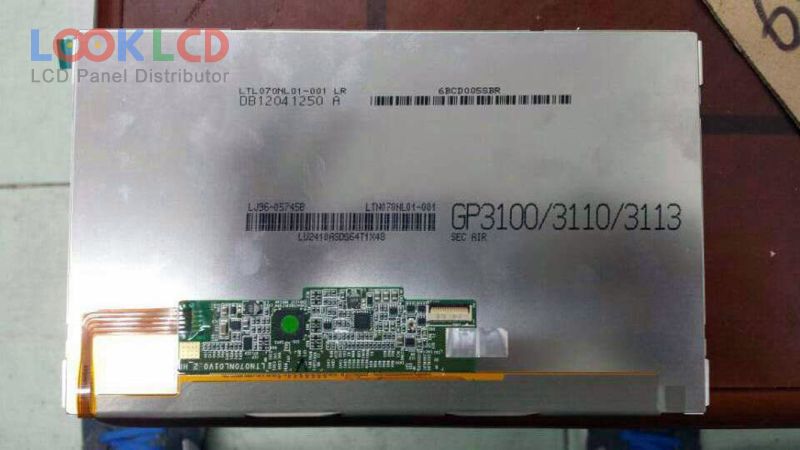

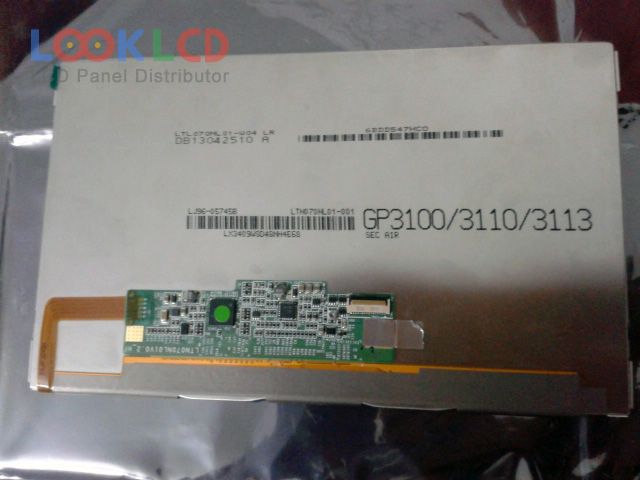

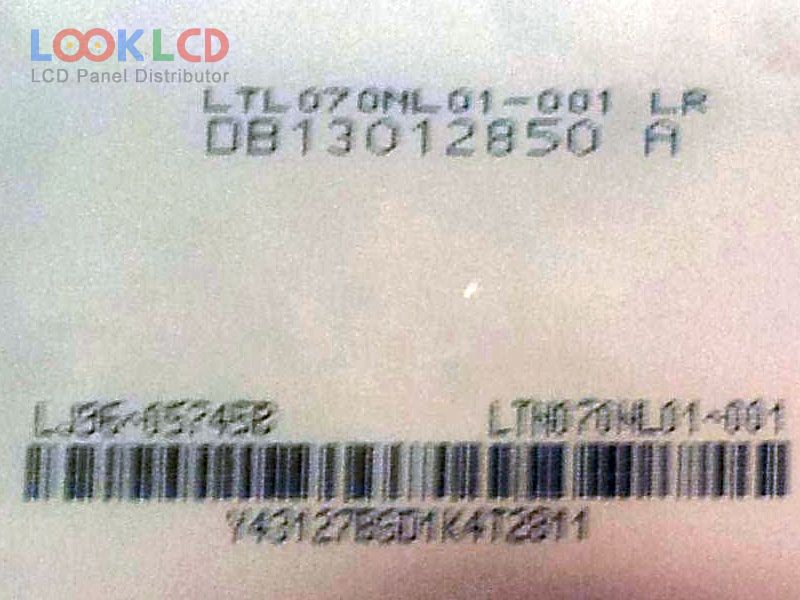

| Číslo dielu | LTN070NL01 |
| Značka | Samsung |
| Veľkosť | 7.0 |
| Aplikácia | PAD |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 800:1 |
| Farby | 16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTN070NL01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | PLS, Normally Black, Transmissive |
| aktívna oblasť | 153.6×90 mm |
| obrys | 164.05×100.86 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC), CIE193150% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S4PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 8-bit), 31 pins |
| vstupné napätie | 3.7V (Typ.) |
| aplikácie | PAD |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| LQ070Y5DG11 | SHARP | 7.0 | 800×480 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
| LTN070NL01 | Samsung | 7.0 | 1024×600 |
| LTN070NL01-801 | Samsung | 7.0 | 1024×600 |
| M070SW46 R0 | IVO | 7.0 | 1200×1920 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| HE101NA-02C | Innolux | 10.1 | 1280×800 |
| HV070WX2-1E0 | HYDIS | 7.0 | 800×1280 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| LP101WH4-SLAB | LG Display | 10.1 | 1366×768 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
