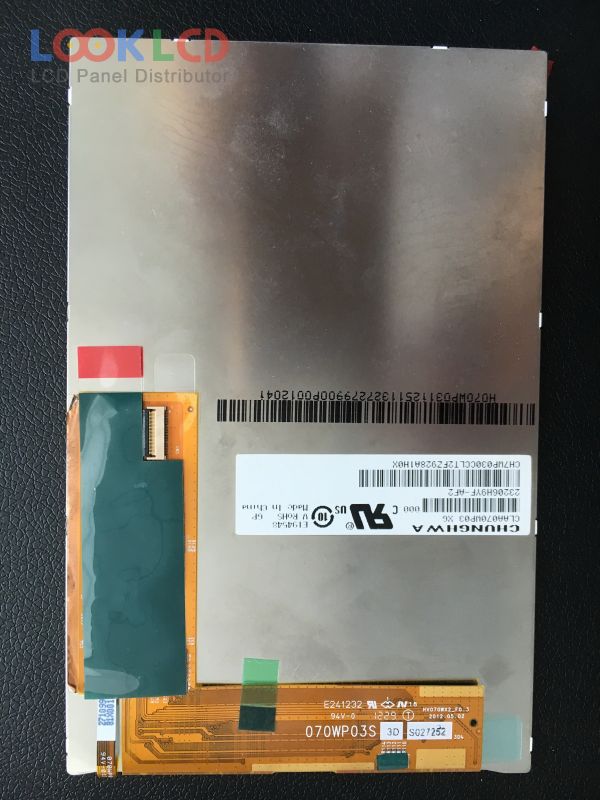

| Číslo dielu | CLAA070WP03 |
| Značka | CPT |
| Veľkosť | 7.0 |
| Aplikácia | PAD |
| Rozhodnutie | 800×1280 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 700:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA070WP03 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×1280 , WXGA |
| režim zobrazenia | HFFS, Normally Black, Transmissive |
| aktívna oblasť | 94.2×150.72 mm |
| obrys | 104.32×161.67×4.05 mm |
| povrch | Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193160% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 31 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
| CLAA048LA0ACT | CPT | 4.8 | 800×480 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| CLAA098EP01XG | CPT | 9.8 | 1280×960 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| BP082WX1-100 | BOE | 8.2 | 1280×800 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| HV121P01-100 | HYDIS | 12.1 | 1400×1050 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| LD070WU2-SH01 | LG Display | 7.0 | 1200×1920 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
