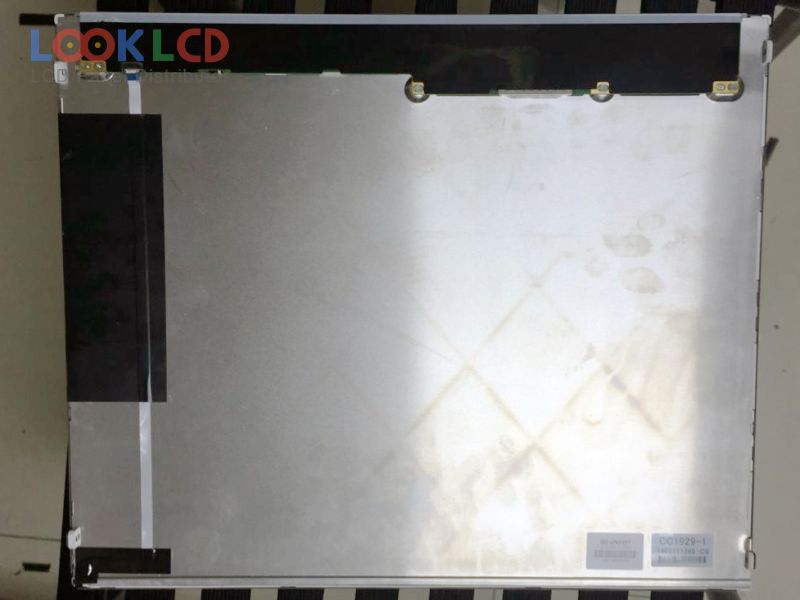

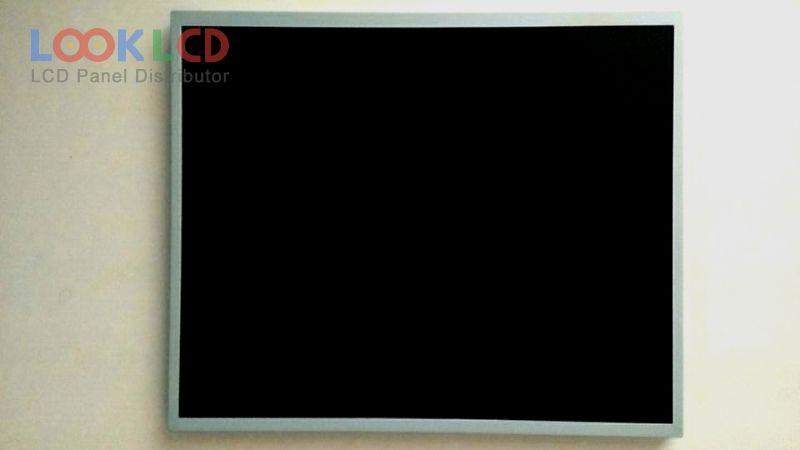

| Číslo dielu | LQ170E1LG21 |
| Značka | SHARP |
| Veľkosť | 17.0 |
| Aplikácia | GM |
| Rozhodnutie | 1280×1024 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 1000:1 |
| Farby | 16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | SHARP |
| panelový model | LQ170E1LG21 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 17.0 inch |
| rozhodnutie | 1280(RGB)×1024 , SXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 337.92×270.336 mm |
| obrys | 358.5×296.5×13.4 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC), CIE193176% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | GM |
