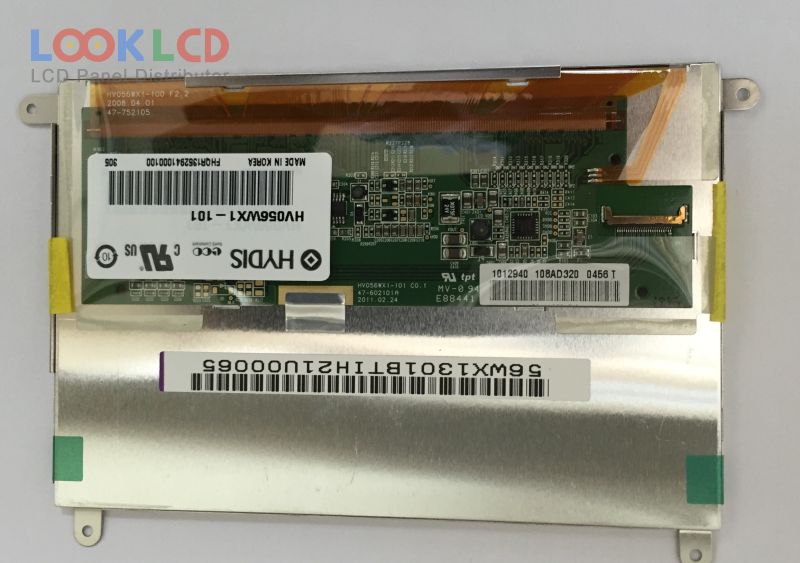

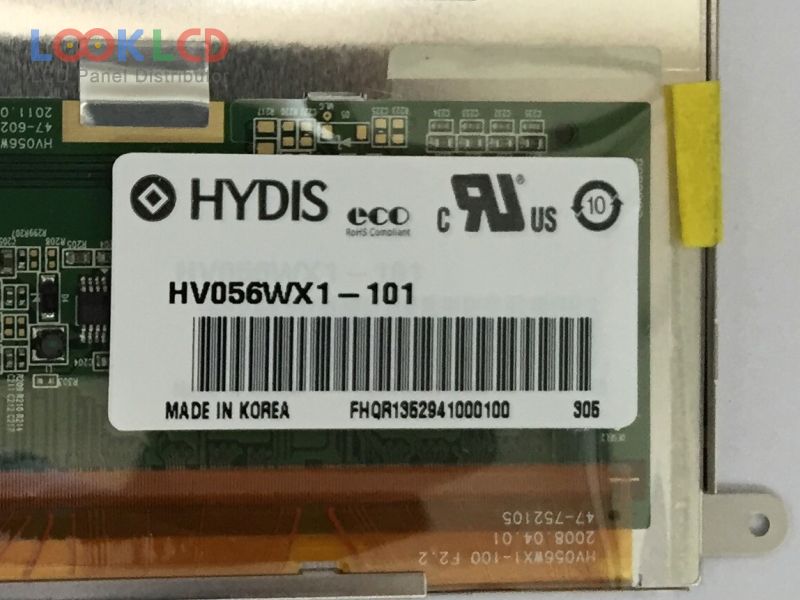

| Číslo dielu | HV056WX1-101 |
| Značka | HYDIS |
| Veľkosť | 5.6 |
| Aplikácia | UMPC |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | HYDIS |
| panelový model | HV056WX1-101 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.6 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | HFFS, Normally Black, Transmissive |
| aktívna oblasť | 120.96×75.6 mm |
| obrys | 131.7×87.7×5 mm |
| povrch | |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 8S2PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 25 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | UMPC |
