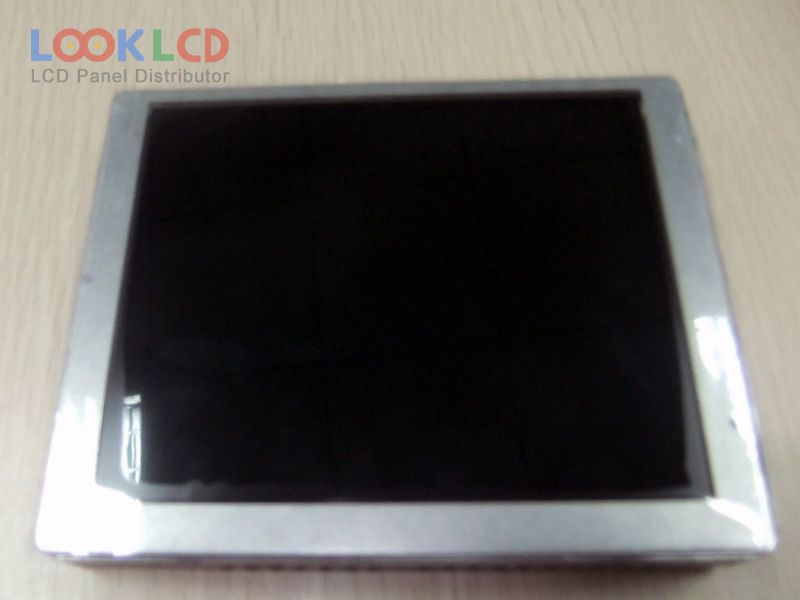

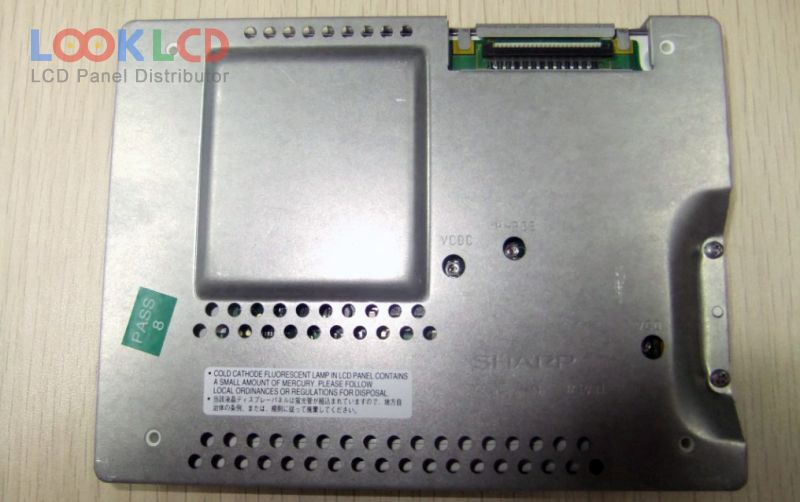

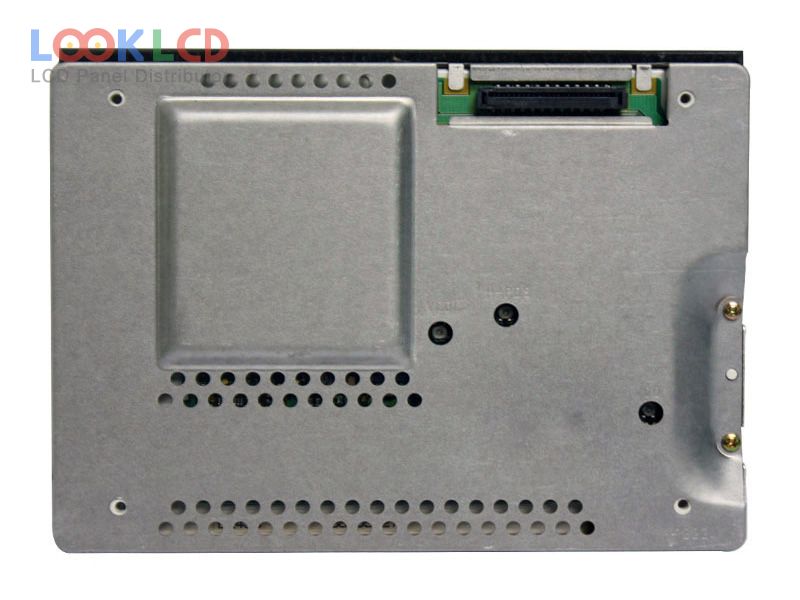

| Číslo dielu | LQ056A3AG01R |
| Značka | SHARP |
| Veľkosť | 5.6 |
| Aplikácia | |
| Rozhodnutie | 320×234 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 60:1 |
| Farby | Full color |
| Podsvietenie | CCFL |
| Rozhranie | Analog |
| značka panelu | SHARP |
| panelový model | LQ056A3AG01R |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.6 inch |
| rozhodnutie | 320(RGB)×234 |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 114.2×83.5 mm |
| obrys | 140×102.7 mm |
| povrch | |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 60:1 (Typ.) |
| zobraziť farby | Full color |
| Doba odozvy | 15/20 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| typ lampy | 1 pcsCCFLEmbedded (Inverter) |
| signálové rozhranie | Analog RGB + Composite Video (NTSC/PAL), 24 pins |
| vstupné napätie | 12.0V (Typ.) |
