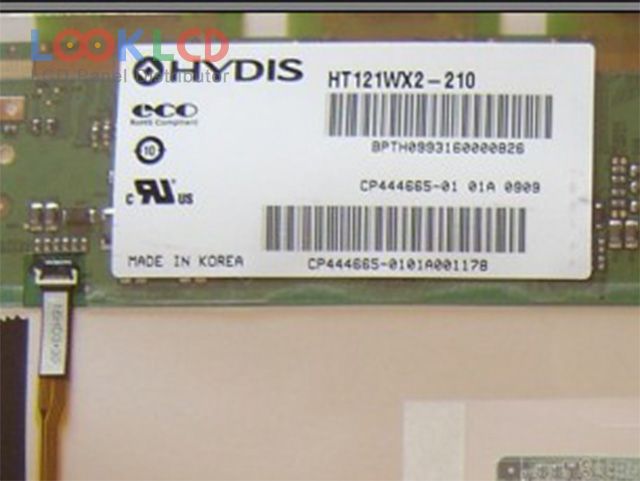

| Číslo dielu | HT121WX2-210 |
| Značka | HYDIS |
| Veľkosť | 12.1 |
| Aplikácia | PAD |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | HYDIS |
| panelový model | HT121WX2-210 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 261.12×163.2 mm |
| obrys | 276.8×180×6.8 mm |
| povrch | Glare (Haze 0%) |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 12S4PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
