| Číslo dielu | HSD070ISN1-D00 |
| Značka | HannStar |
| Veľkosť | 7.0 |
| Aplikácia | DPF |
| Rozhodnutie | 800×600 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 600:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | HannStar |

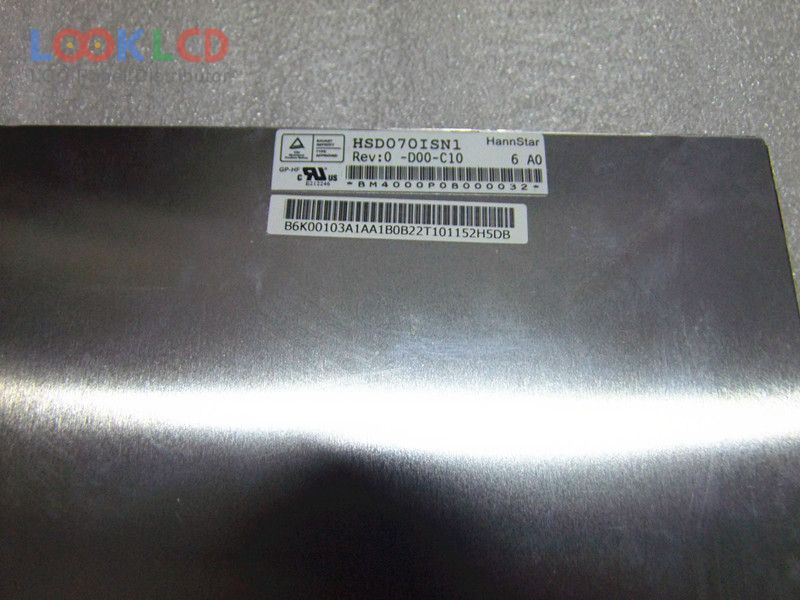

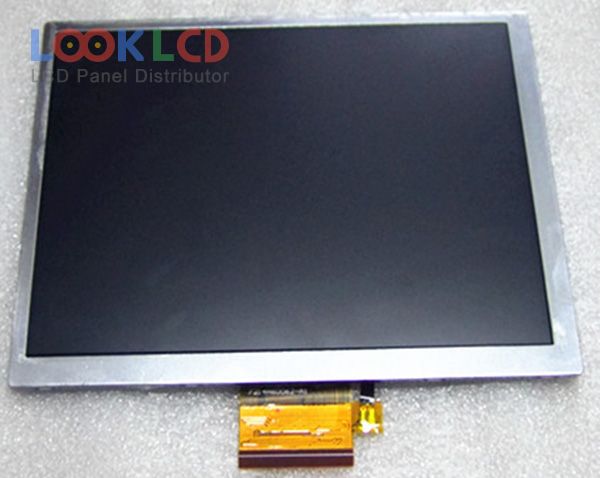

| panelový model | HSD070ISN1-D00 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×600 , SVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 141.6×106.2 mm |
| obrys | 156.4×122.25×4.4 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 2.4/5.6 (Typ.)(Tr/Td) |
| pozorovací uhol | 60/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 2S5PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit), 60 pins |
| vstupné napätie | 3.3/9.5/16.5/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikácie | DPF |
