| Číslo dielu | HSD070IDW1-D00 |
| Značka | HannStar |
| Veľkosť | 7.0 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 500:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | HannStar |

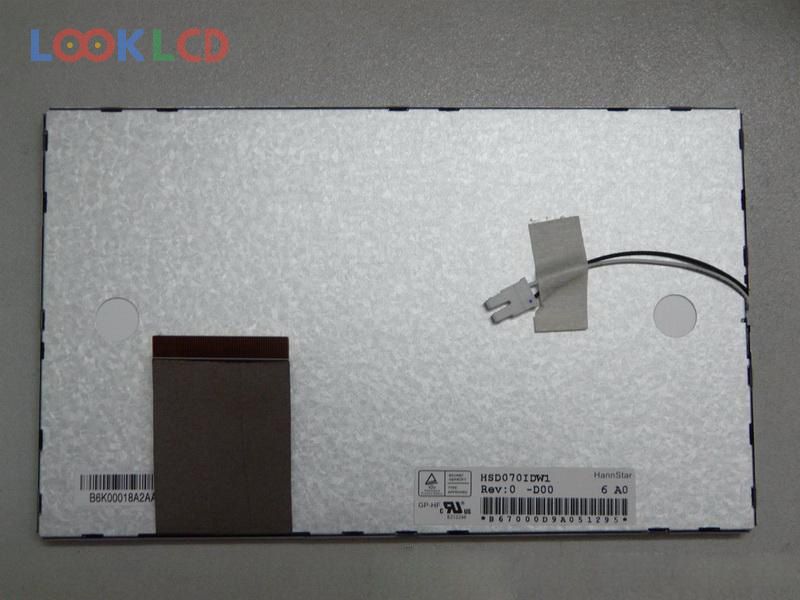

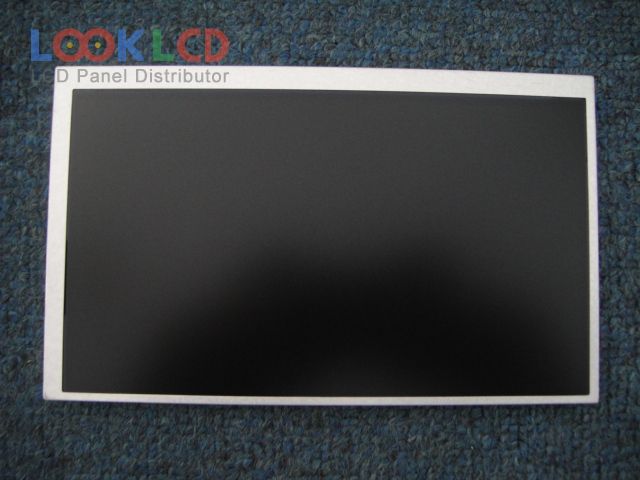

| panelový model | HSD070IDW1-D00 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 153.6×86.64 mm |
| obrys | 164.9×100×6 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Doba odozvy | 5/20 (Typ.)(Tr/Td) |
| pozorovací uhol | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhranie | TTL (1 ch, 6/8-bit), 60 pins |
| vstupné napätie | 3.0/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikácie | CNS |
