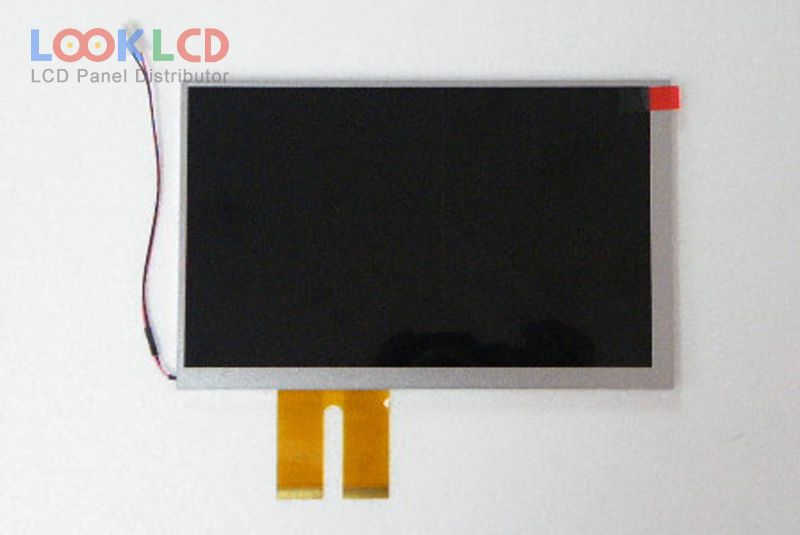

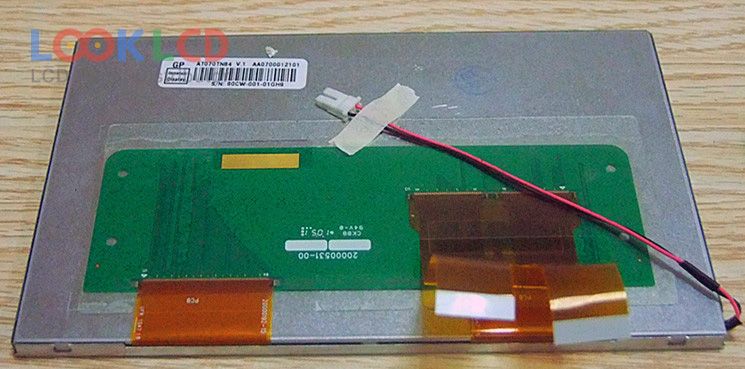

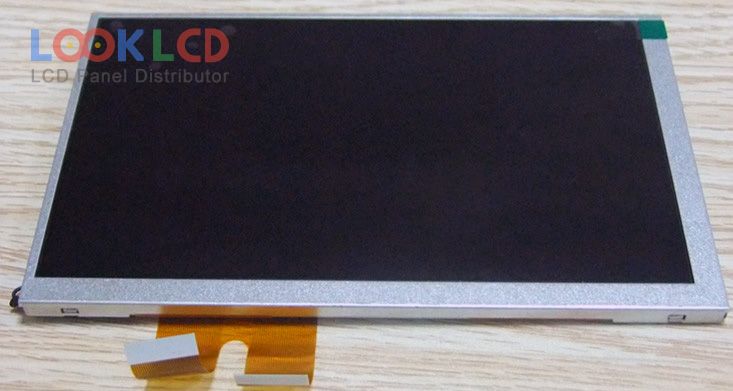

| Číslo dielu | AT070TN84 V.1 |
| Značka | Innolux |
| Veľkosť | 7.0 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | INNOLUX |
| panelový model | AT070TN84 V.1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 165×104×6.3 mm |
| povrch | Antiglare |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S9PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 60 pins |
| vstupné napätie | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikácie | CNS |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN84 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| DLC0430EZG-11 | Other | 4.3 | 480×272 |
| LAJ080W001A | TPO | 8.0 | 800×480 |
| LB040Q02-TD02 | LG Display | 4.0 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ080Y5CGQ2 | SHARP | 8.0 | 800×480 |
| ND068-101A1 | 6.8 | 1280×480 | |
| PD040QT2 | E Ink | 4.0 | 320×240 |
| PW070NS1W2 | E Ink | 7.0 | 480×320 |
