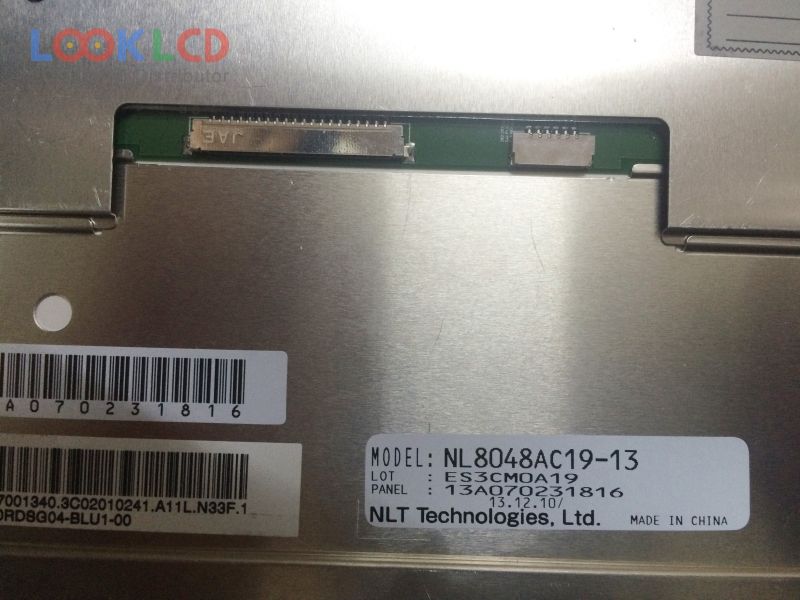

| Číslo dielu | NL8048AC19-13 |
| Značka | NLT |
| Veľkosť | 7.0 |
| Aplikácia | IA |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 500 |
| CR | 800:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | NLT |
| panelový model | NL8048AC19-13 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 170×111×9 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193160% |
| Doba odozvy | 8 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
