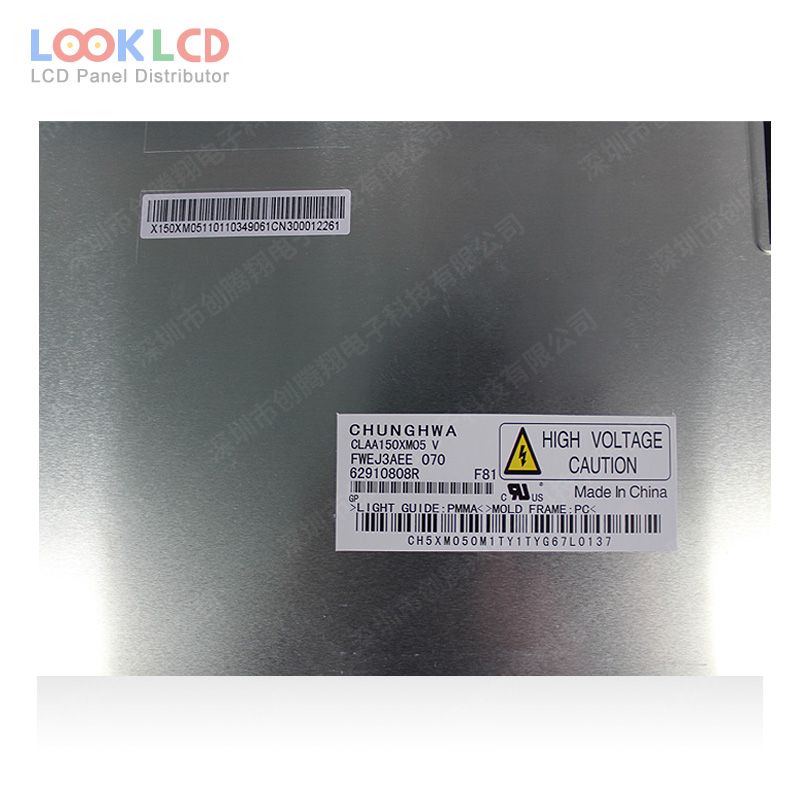

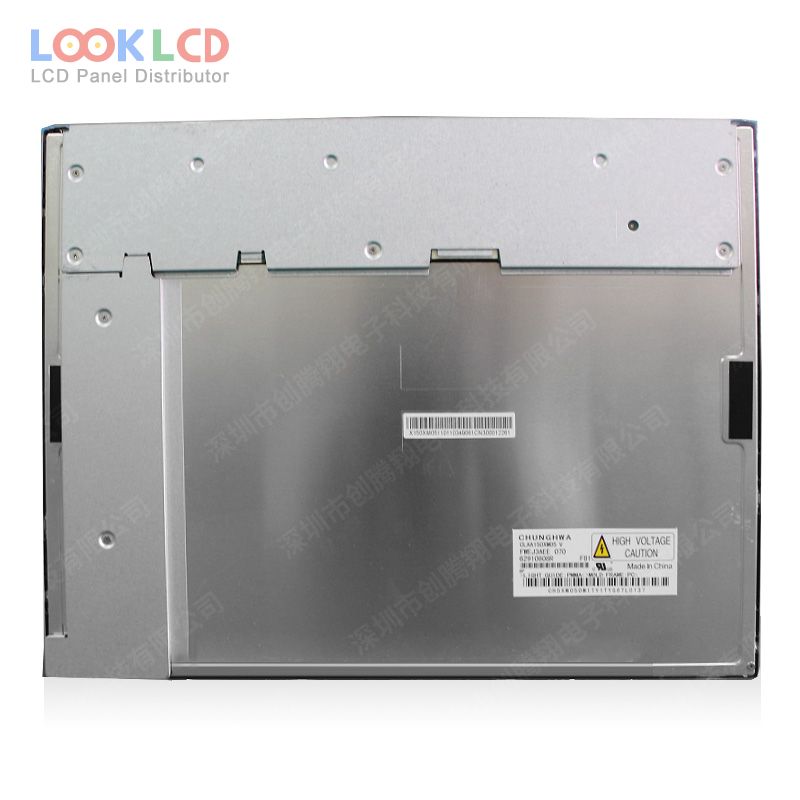

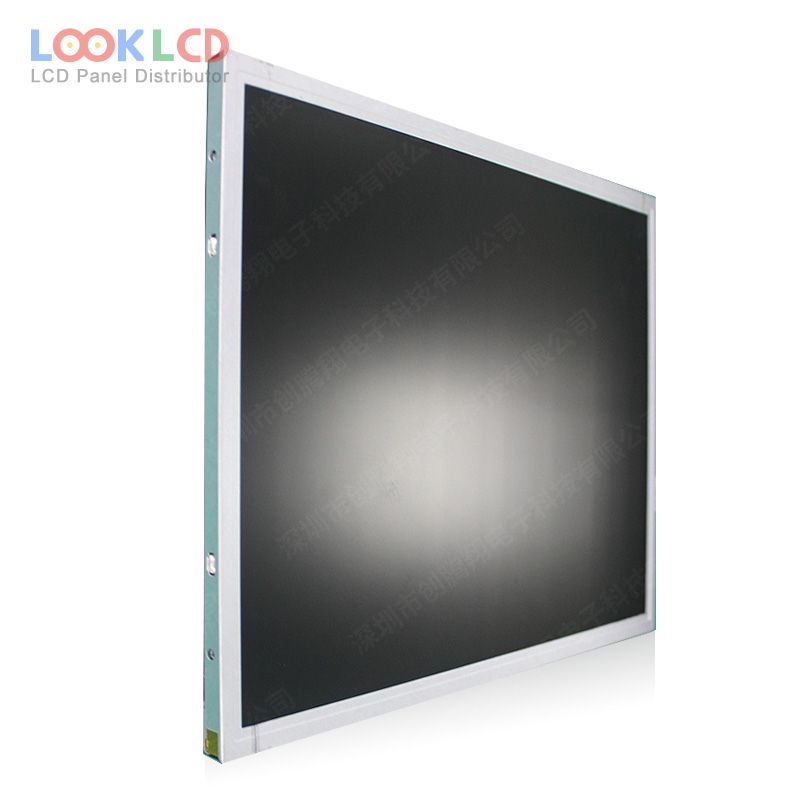

| Číslo dielu | CLAA150XM05 |
| Značka | CPT |
| Veľkosť | 15.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 700:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA150XM05 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.0 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 304.128×228.096 mm |
| obrys | 326.5×253.5 mm |
| povrch | Antiglare |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193163% |
| Doba odozvy | 2/6 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 8-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | DMPC |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA102NA01CW | CPT | 10.2 | 1024×600 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| CLAA150XM05 | CPT | 15.0 | 1024×768 |
| CLAA150XP01Q | CPT | 15.0 | 1024×768 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| CLAA156WA12 | CPT | 15.6 | 1366×768 |
| CLAA170EA07 | CPT | 17.0 | 1280×1024 |
| HT185WX1-300 | BOE | 18.5 | 1366×768 |
| LM150X06-A4C4 | LG Display | 15.0 | 1024×768 |
| LM190E08-TLL3 | LG Display | 19.0 | 1280×1024 |
| LM201W01-B6K1 | LG Display | 20.1 | 1680×1050 |
| M170E5-L08 | Innolux | 17.0 | 1280×1024 |
| M215HW01 V6 | AUO | 21.5 | 1920×1080 |
| M215XTN01.0 | AUO | 21.5 | 1366×768 |
| M270HGE-L10 | Innolux | 27.0 | 1920×1080 |
| MT185GW01 V.4 | Innolux | 18.5 | 1366×768 |
| MT216WW01 V.0 | Innolux | 21.6 | 1680×1050 |
