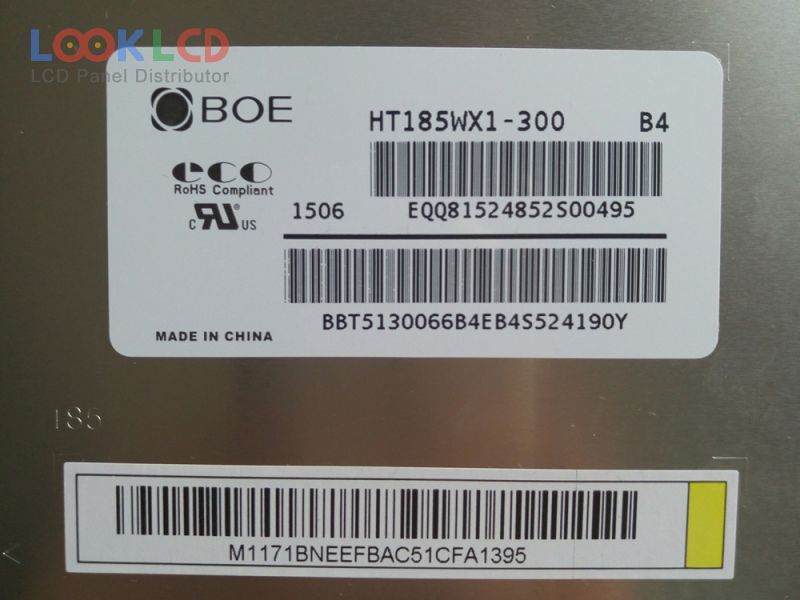

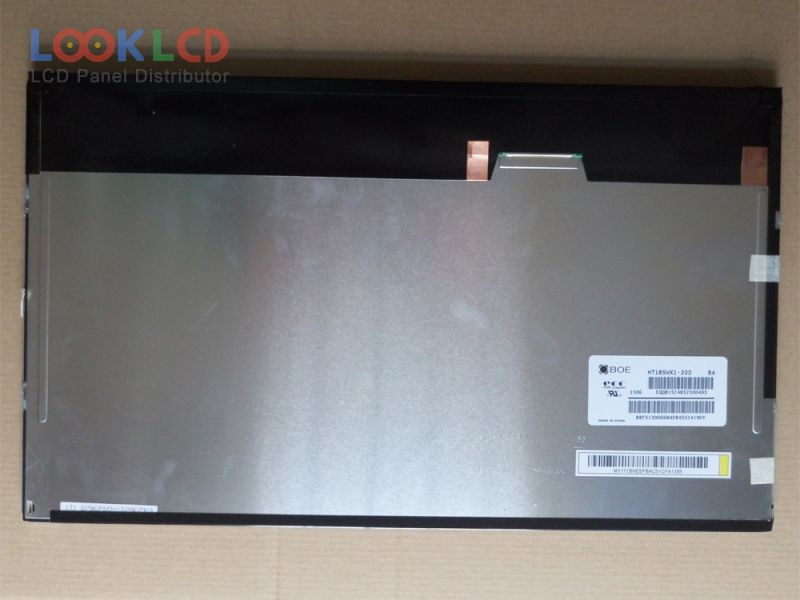

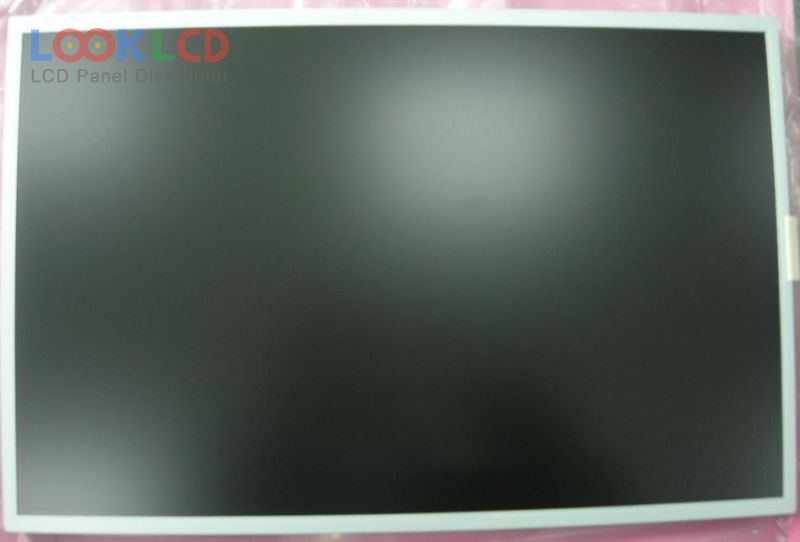

| Číslo dielu | HT185WX1-300 |
| Značka | BOE |
| Veľkosť | 18.5 |
| Aplikácia | DMPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | BOE |
| panelový model | HT185WX1-300 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 18.5 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 409.8×230.4 mm |
| obrys | 430.4×254.6×11.4 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odozvy | 1.5/3.5 (Typ.)(Tr/Td) |
| pozorovací uhol | 85/85/80/80 (Typ.)(CR≥20)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 10S4PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
| G185XW01 V2 | AUO | 18.5 | 1366×768 |
| HT185WX1-100 | BOE | 18.5 | 1366×768 |
| HT185WX1-300 | BOE | 18.5 | 1366×768 |
| LC185WH1-TLG1 | LG Display | 18.5 | 1366×768 |
| LM185TT2A | PANDA | 18.5 | 1366×768 |
| LTM185AT01 | Samsung | 18.5 | 1366×768 |
| LTM185AT02 | Samsung | 18.5 | 1366×768 |
| LTM185AT05 | Samsung | 18.5 | 1366×768 |
| M185B1-L02 | Innolux | 18.5 | 1366×768 |
| MT185GW01 V.4 | Innolux | 18.5 | 1366×768 |
| CLAA215FA04 | CPT | 21.5 | 1920×1080 |
| HR236WU1-100 | BOE | 23.6 | 1920×1080 |
| LM170E03-TLJ1 | LG Display | 17.0 | 1280×1024 |
| LM190E08-TLJ8 | LG Display | 19.0 | 1280×1024 |
| LM230WF5-TLF1 | LG Display | 23.0 | 1920×1080 |
| LM270WF1-TLD1 | LG Display | 27.0 | 1920×1080 |
| M215HW03 V1Q0 | AUO | 21.5 | 1920×1080 |
| M270HW02 V3 | AUO | 27.0 | 1920×1080 |
| MT170EN01 V.1 | Innolux | 17.0 | 1280×1024 |
| MT190AW02 V.V | Innolux | 19.0 | 1440×900 |
