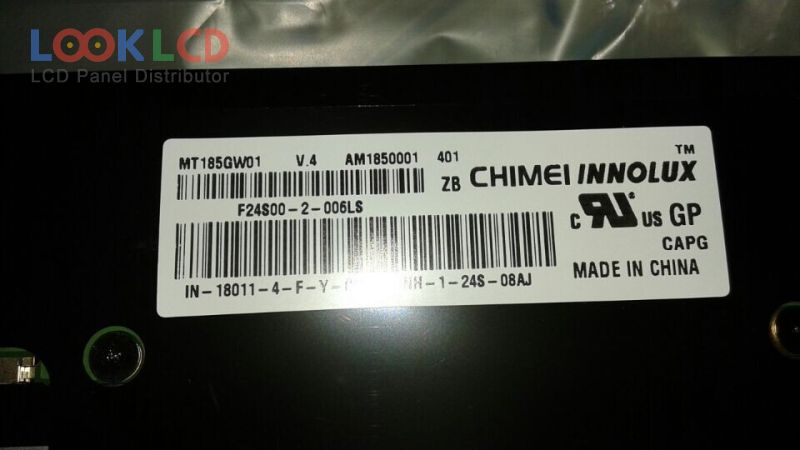

| Číslo dielu | MT185GW01 V.4 |
| Značka | Innolux |
| Veľkosť | 18.5 |
| Aplikácia | DMPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | MT185GW01 V.4 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 18.5 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 409.8×230.4 mm |
| obrys | 430.37×254.6×10.25 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193170% |
| Doba odozvy | 1.5/3.5 (Typ.)(Tr/Td) |
| pozorovací uhol | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 14S6PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
