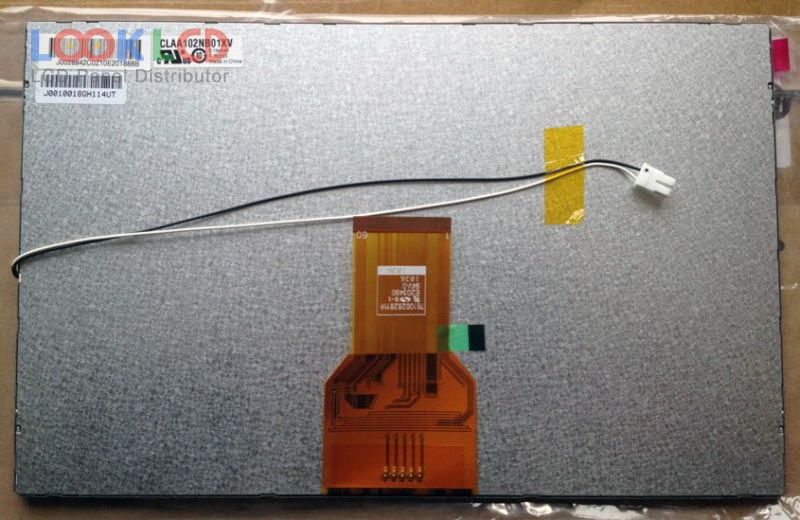

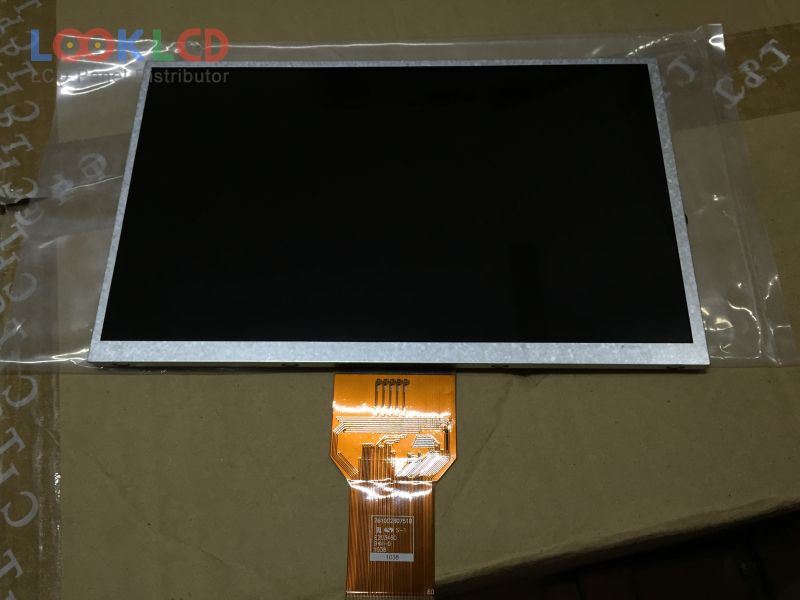

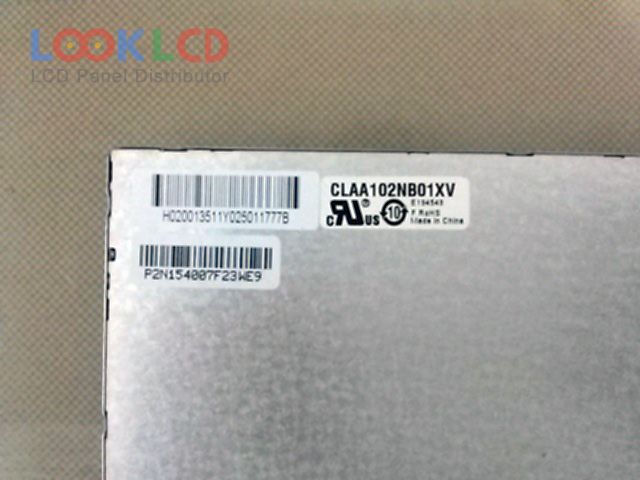

| Číslo dielu | CLAA102NB01XV |
| Značka | CPT |
| Veľkosť | 10.2 |
| Aplikácia | IA |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 700:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA102NB01XV |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.2 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | HFFS, Normally Black, Transmissive |
| aktívna oblasť | 222.72×130.5 mm |
| obrys | 235×147×5.4 mm |
| povrch | Antiglare |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC), CIE193160% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4S12PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 60 pins |
| vstupné napätie | 3.3/13/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikácie | IA |
