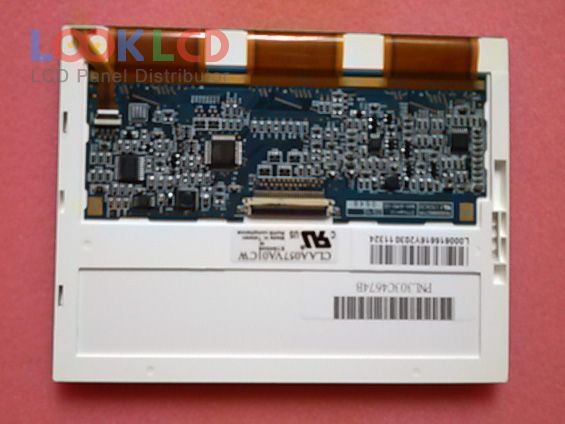

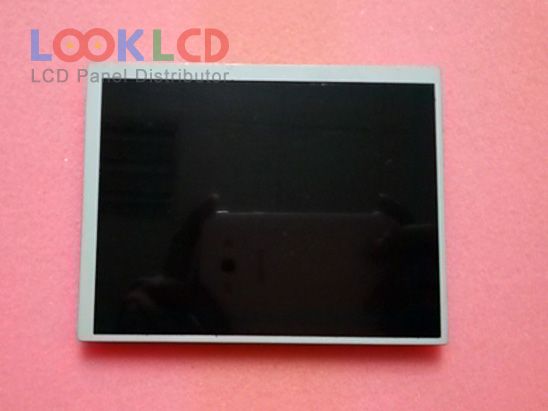

| Číslo dielu | CLAA057VA01CW |
| Značka | CPT |
| Veľkosť | 5.7 |
| Aplikácia | IA |
| Rozhodnutie | 640×480 |
| Zloženie | LCM |
| Jas | 220 |
| CR | 300:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | CPT |
| panelový model | CLAA057VA01CW |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.7 inch |
| rozhodnutie | 640(RGB)×480 , VGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 116.16×87.12 mm |
| obrys | 127×98.43×6.9 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastný pomer | 300:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193150% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | TTL (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.)(VCC) |
| aplikácie | IA |
