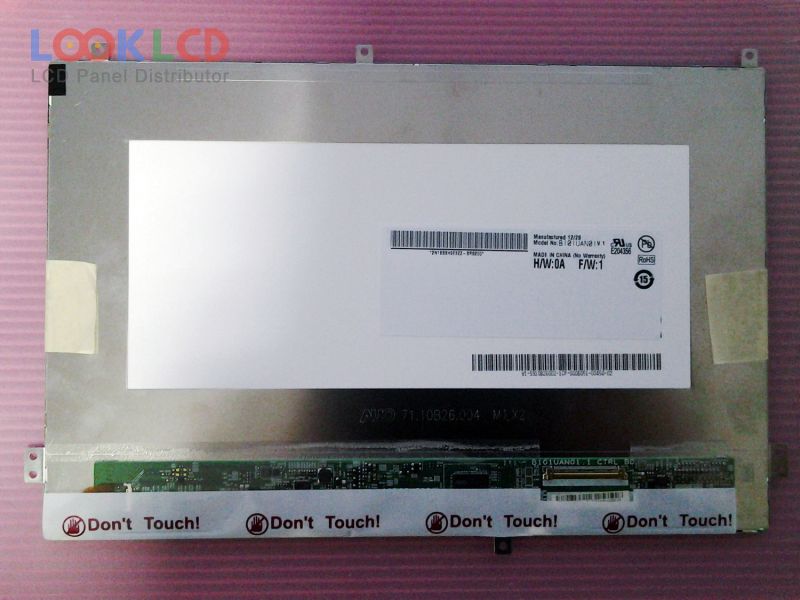

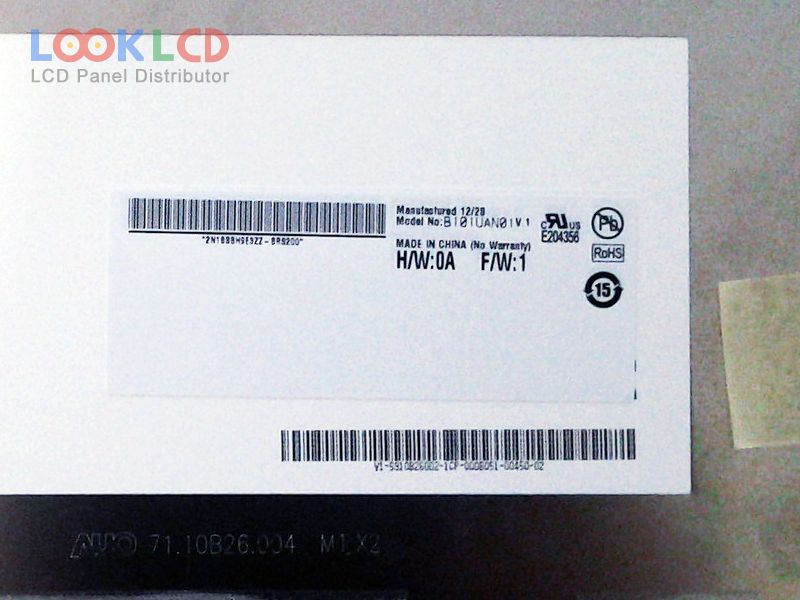

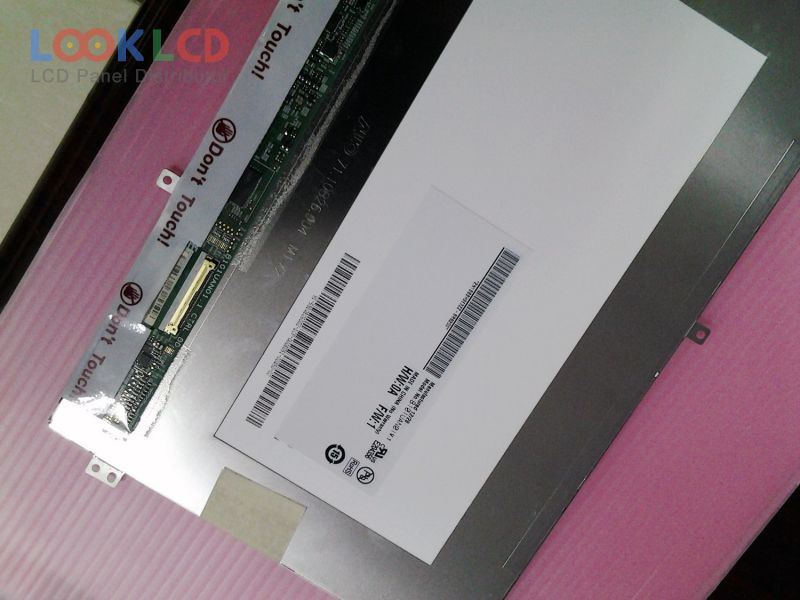

| Číslo dielu | B101UAN01.1 |
| Značka | AUO |
| Veľkosť | 10.1 |
| Aplikácia | PAD |
| Rozhodnutie | 1920×1200 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 800:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AU Optronics |
| panelový model | B101UAN01.1 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1920(RGB)×1200 , WUXGA |
| režim zobrazenia | AHVA, Normally Black, Transmissive |
| aktívna oblasť | 216.81×135.5 mm |
| obrys | 228.6×149.2×4.65 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193152% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 5 stringsWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (2 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
