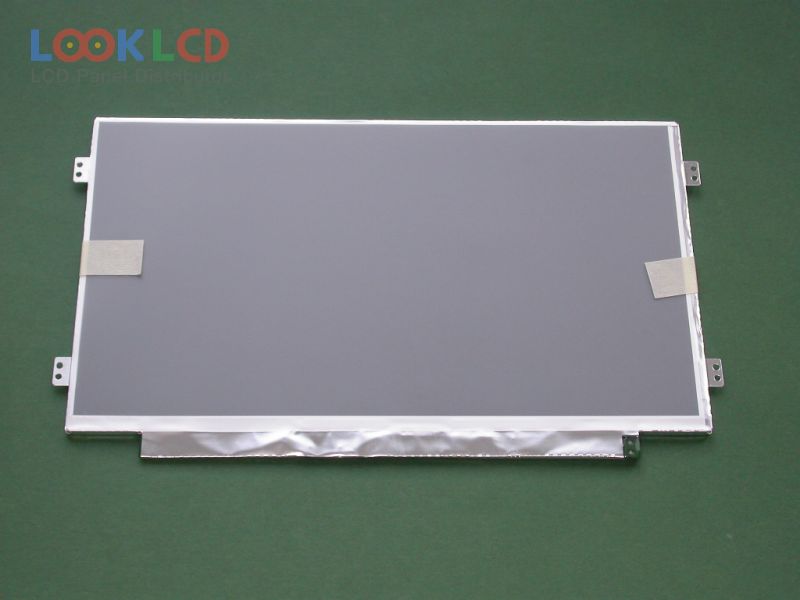

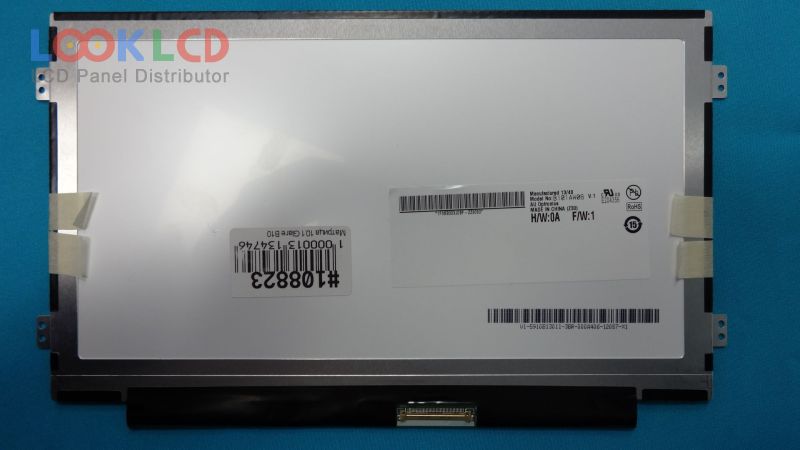

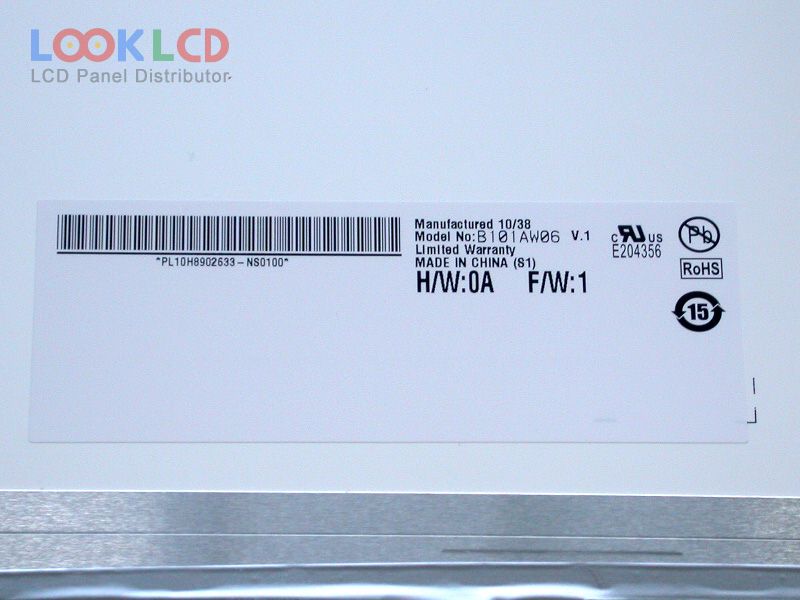

| Číslo dielu | B101AW06 V1 HW0A |
| Značka | AUO |
| Veľkosť | 10.1 |
| Aplikácia | NOPC |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 400:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | B101AW06 V1 HW0A 5 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 222.72×125.28 mm |
| obrys | 245×146.5×3.6 mm |
| tvarový štýl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 400:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 9/7 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NOPC |
