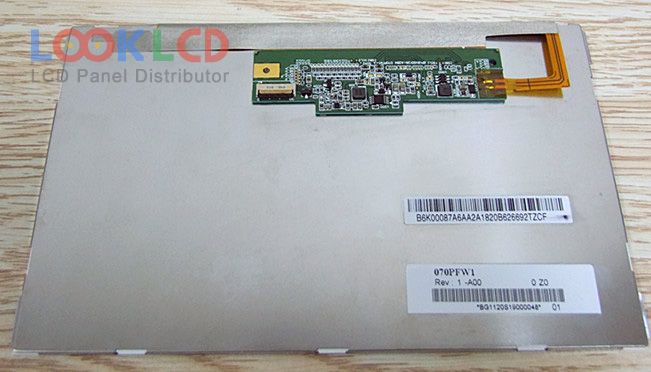

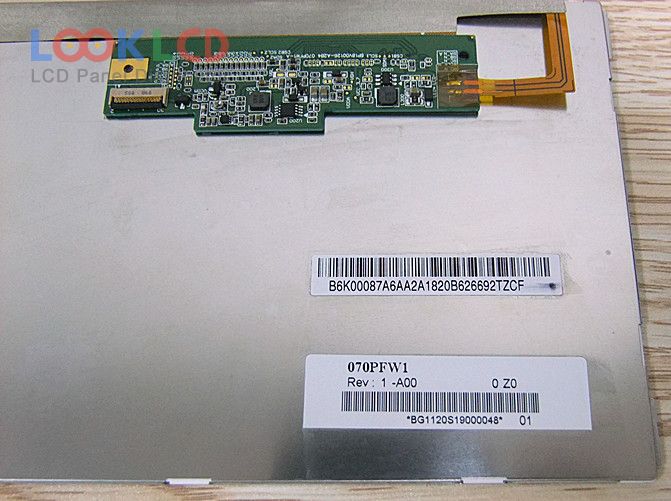

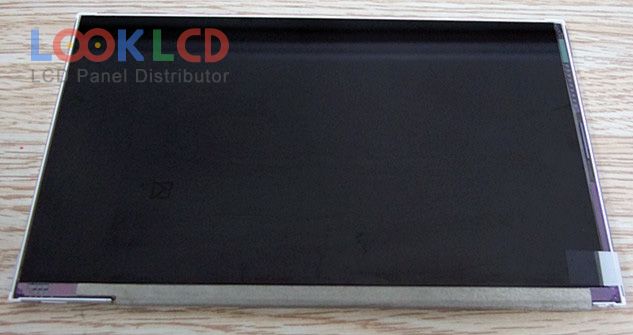

| Číslo dielu | HSD070PFW1-A00 |
| Značka | HannStar |
| Veľkosť | 7.0 |
| Aplikácia | NOPC |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 800:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | HannStar |
| panelový model | HSD070PFW1-A00 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 153.6×90 mm |
| obrys | 164.05×100.86×4.94 mm |
| povrch | Glare (Haze 0%), Hard coating, Reflection 1.5% (Max.) |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 4/12 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S7PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 8-bit), 31 pins |
| vstupné napätie | 3.2/4.2V (Min./Max.) |
| aplikácie | NOPC |
| A070PAN01.0 | AUO | 7.0 | 900×1440 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| HSD070PFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| HSD070PFW3-C01 | HannStar | 7.0 | 1024×600 |
| HSD070PFW3-D00 | HannStar | 7.0 | 1024×600 |
| HSD070PWW1-B01 | HannStar | 7.0 | 1280×800 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| B101AW01 V2 HW0A | AUO | 10.1 | 1024×576 |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| LP101WSB-TLN1 | LG Display | 10.1 | 1024×600 |
| LS075AT011 | Innolux | 7.5 | 1200×900 |
| LTN116AT01-401 | Samsung | 11.6 | 1366×768 |
| LTN116AT01-801 | Samsung | 11.6 | 1366×768 |
| M101NWT4 R3 | IVO | 10.1 | 1024×600 |
| N116BGE-L42 | Innolux | 11.6 | 1366×768 |
