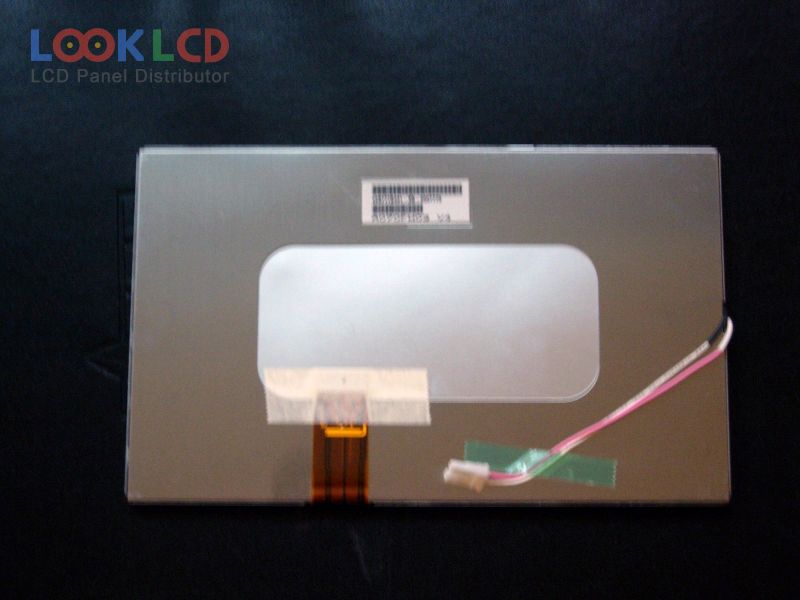

| Číslo dielu | A070FW03 V4 |
| Značka | AUO |
| Veľkosť | 7.0 |
| Aplikácia | VDP |
| Rozhodnutie | 480×234 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 300:1 |
| Farby | |
| Podsvietenie | CCFL |
| Rozhranie | Analog |
| značka panelu | AUO |
| panelový model | A070FW03 V4 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 480(RGB)×234 |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 154.08×86.58 mm |
| obrys | 164.9×100 mm |
| povrch | Antiglare (Haze 25%) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 300:1 (Typ.) |
| zobraziť farby | |
| Doba odozvy | 12/18 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/40/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | TFT Specific Analog RGB, 26 pins |
| vstupné napätie | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplikácie | VDP |
