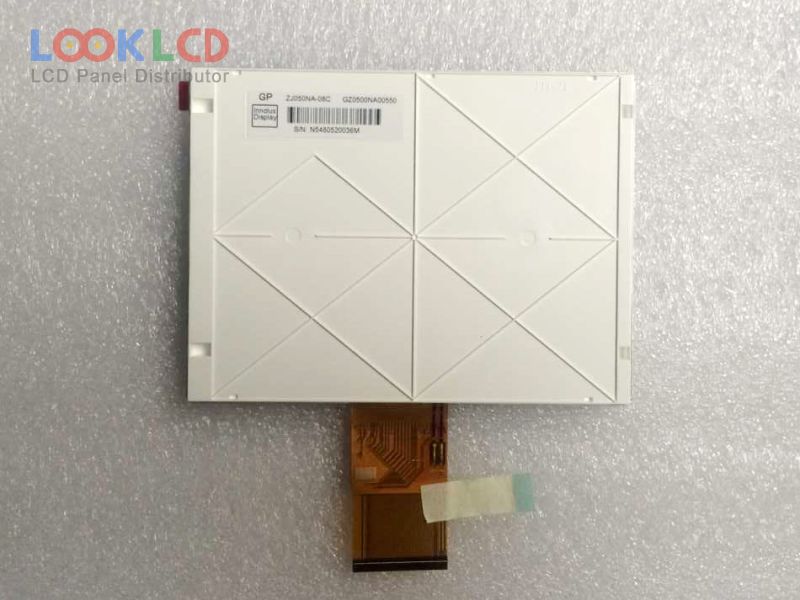

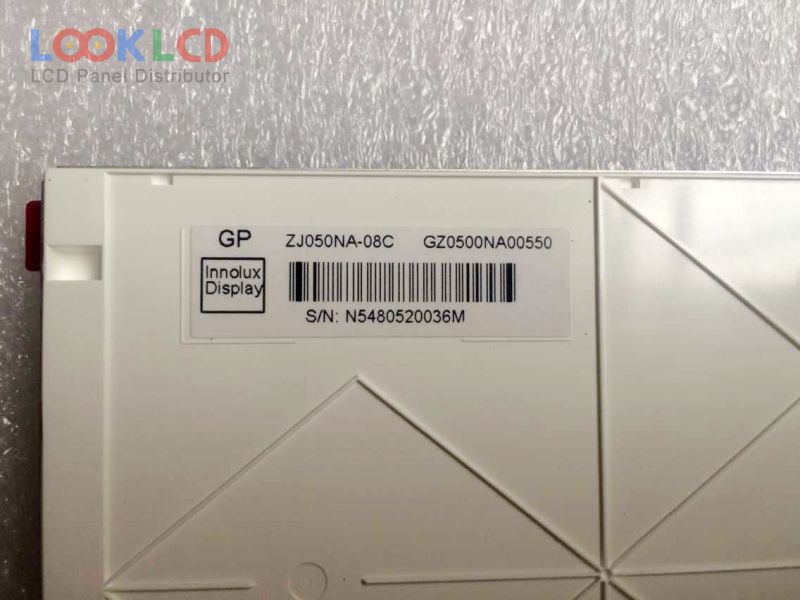

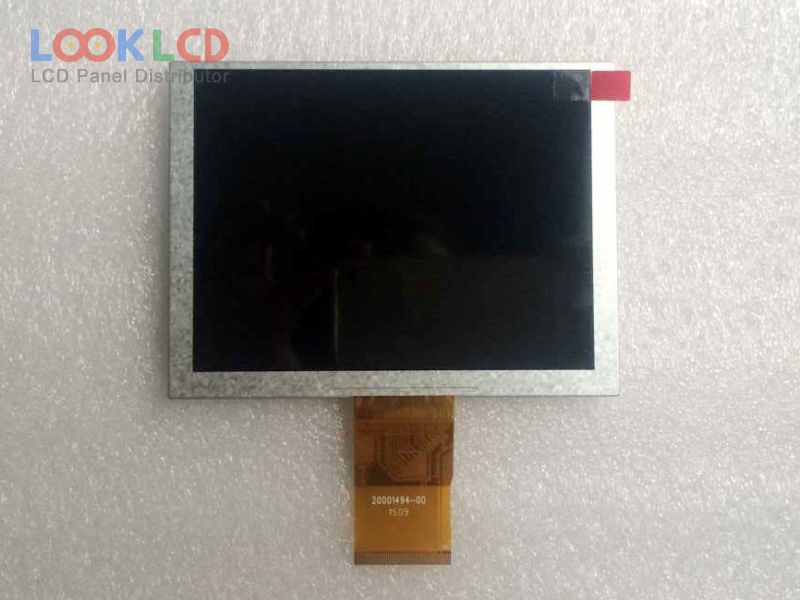

| Číslo dielu | ZJ050NA-08C |
| Značka | Innolux |
| Veľkosť | 5.0 |
| Aplikácia | VOIP |
| Rozhodnutie | 640×480 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 500:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | INNOLUX |
| panelový model | ZJ050NA-08C |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.0 inch |
| rozhodnutie | 640(RGB)×480 , VGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 101.76×76.32 mm |
| obrys | 117.65×88.43×5.9 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193150% |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit), 50 pins |
| vstupné napätie | 3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | VOIP |
