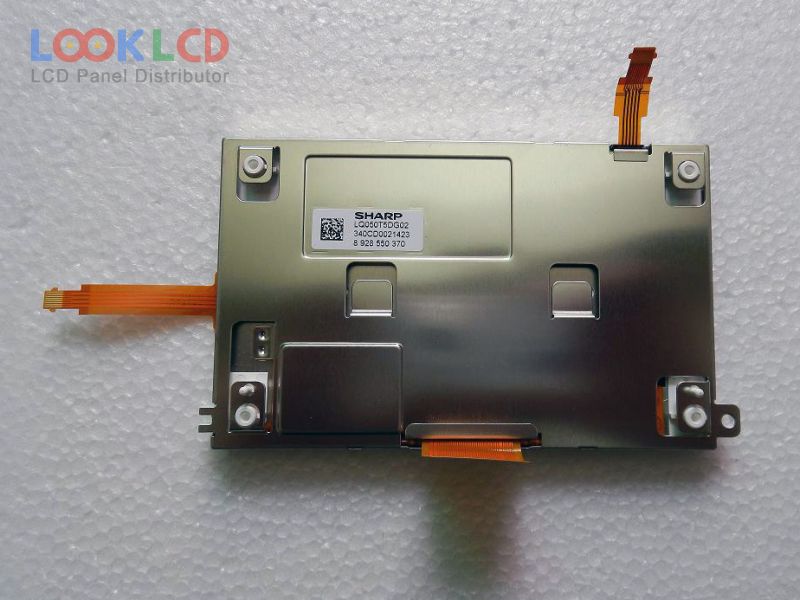

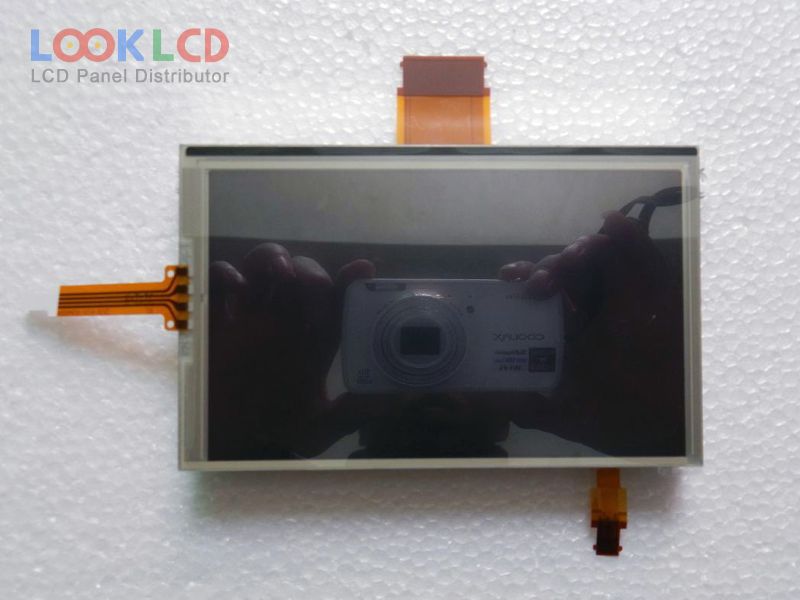

| Číslo dielu | LQ050T5DG02 |
| Značka | SHARP |
| Veľkosť | 5.0 |
| Aplikácia | CNS |
| Rozhodnutie | 400×240 |
| Zloženie | LCM |
| Jas | 600 |
| CR | |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | SHARP |
| panelový model | LQ050T5DG02 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.0 inch |
| rozhodnutie | 400(RGB)×240 , WQVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 108×64.8 mm |
| obrys | 120.6×75.2 mm |
| povrch | |
| jas | 600 cd/m² (Typ.) |
| kontrastný pomer | |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | |
| pozorovací uhol | |
| typ lampy | WLED |
| signálové rozhranie | CMOS (1 ch, 6-bit) |
| rohs: | |
| aplikácie | CNS |
