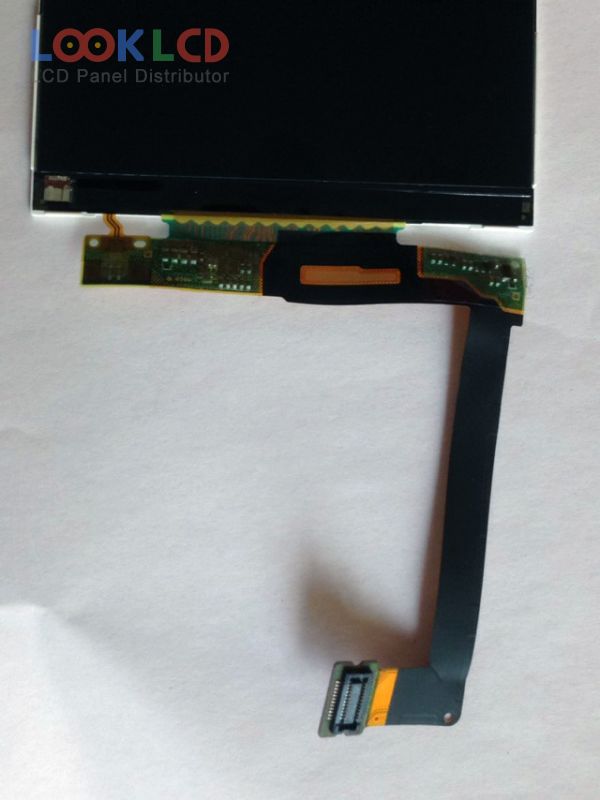

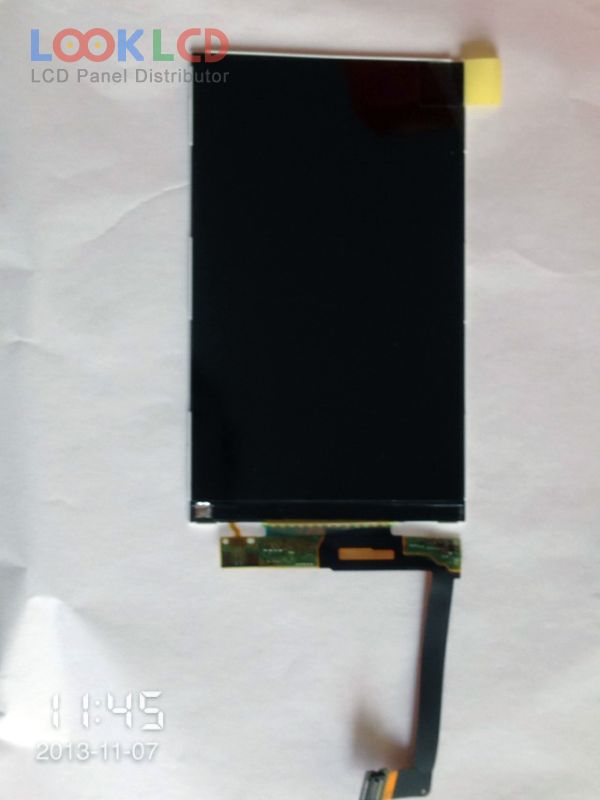

| Číslo dielu | TX11D101VM0EAA |
| Značka | KOE |
| Veľkosť | 4.3 |
| Aplikácia | MPH |
| Rozhodnutie | 480×800 |
| Zloženie | LCM |
| Jas | 850 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | MIPI |
| značka panelu | HITACHI |
| panelový model | TX11D101VM0EAA |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 4.3 inch |
| rozhodnutie | 480(RGB)×800 , WVGA |
| režim zobrazenia | IPS, Normally Black, Transmissive |
| aktívna oblasť | 56.16×93.6 mm |
| obrys | 59.96×101.7 mm |
| povrch | Antireflection |
| jas | 850 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193170% |
| Doba odozvy | 35 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 9S1PWLEDWithout Driver |
| signálové rozhranie | MIPI (3 data lanes), 24 pins |
| vstupné napätie | 1.8/2.8/2.8V (Typ.)(IOVCC/VCC/VCI) |
| aplikácie | MPH |
| 43WQW3H | SII | 4.3 | 480×272 |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| A043FW02 V8 | AUO | 4.3 | 480×272 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LB043WQ1-TD01 | LG Display | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LS043K1SX02 | SHARP | 4.3 | 720×1280 |
| LT043MDY5000 | TOSHIBA | 4.3 | 720×1280 |
| TD043MGEB1 | TPO | 4.3 | 800×480 |
| TX11D101VM0EAA | KOE | 4.3 | 480×800 |
| AMS395GB02 | Samsung | 4.0 | 360×640 |
| BB050HDG-T40 | BOE | 5.0 | 720×1280 |
| LH430WV1-SD01 | LG Display | 4.3 | 480×800 |
| LH600WF2-SD01 | LG Display | 6.0 | 1080×1920 |
| LQ024B7UD01 | SHARP | 2.4 | 160×240 |
| LS030B3UX01D | SHARP | 3.0 | 240×400 |
| MC15G30B | Other | 1.5 | 128×128 |
| PJ045IC-01F | Innolux | 4.5 | 720×1280 |
| TD025THEB5 | TPO | 2.5 | 320×240 |
| TM028LDZ09 | Tianma | 2.8 | 240×400 |
