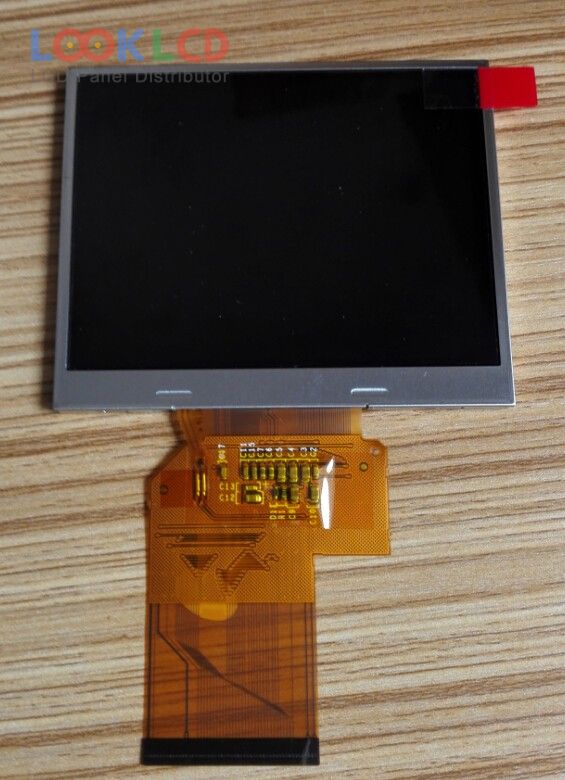

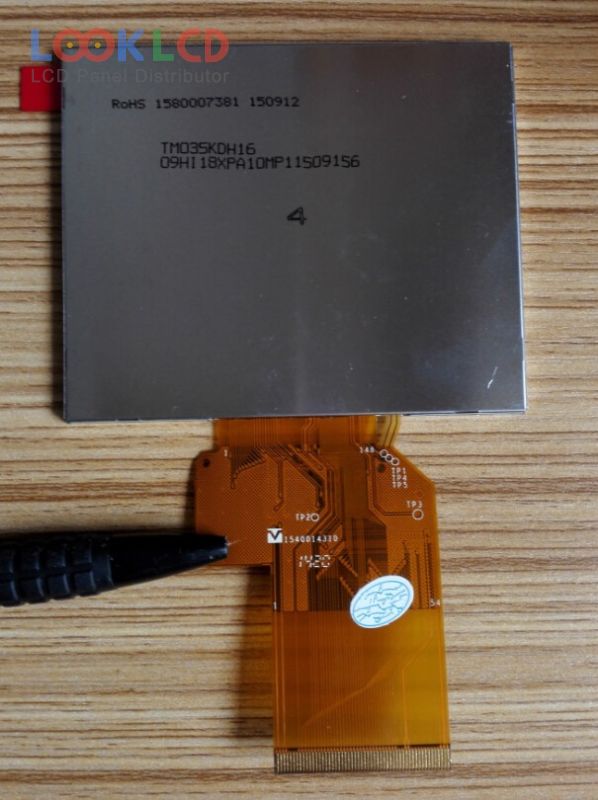

| Číslo dielu | TM035KDH16-09 |
| Značka | Tianma |
| Veľkosť | 3.5 |
| Aplikácia | DSC |
| Rozhodnutie | 320×240 |
| Zloženie | LCM |
| Jas | 330 |
| CR | 500:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | Parallel/Serial |
| značka panelu | TIANMA |
| panelový model | TM035KDH16-09 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 320(RGB)×240 , QVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 70.08×52.56 mm |
| obrys | 76.9×63.9×3.35 mm |
| povrch | Antiglare |
| jas | 330 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193150% |
| Doba odozvy | 20 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhranie | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | DSC |
