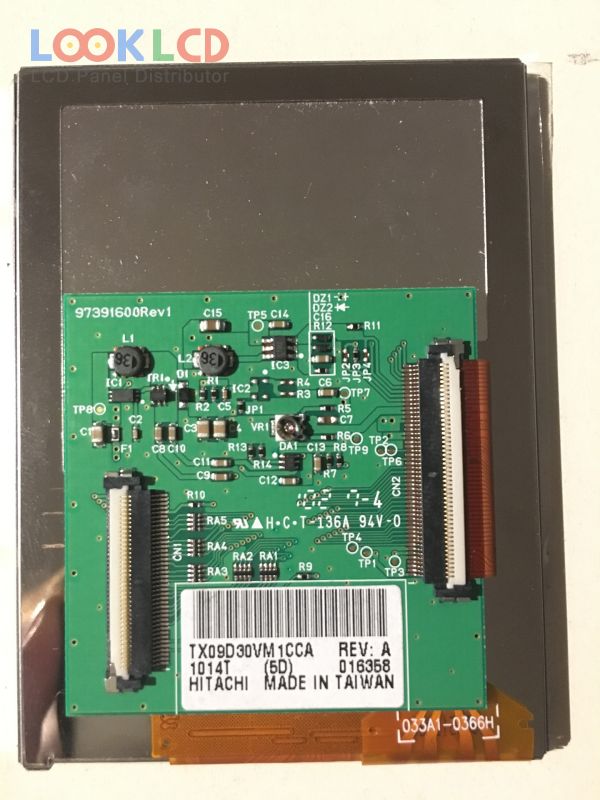

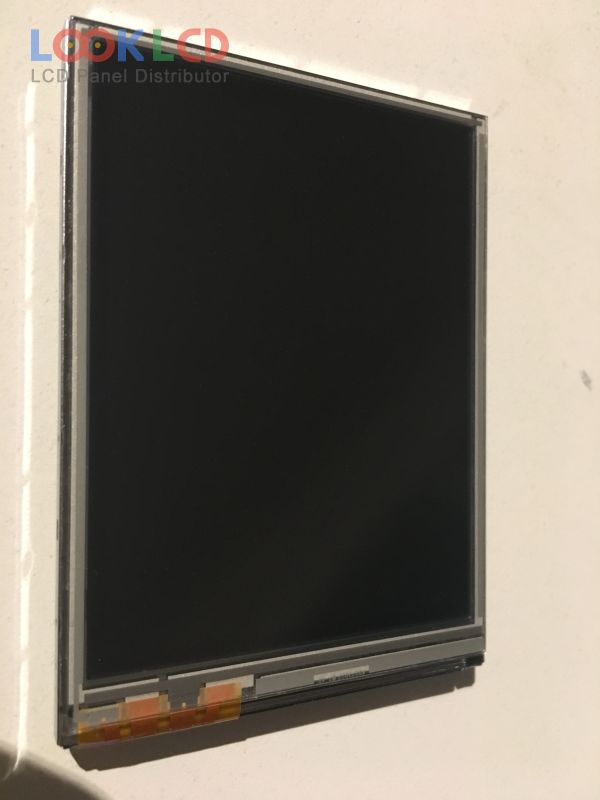

| Číslo dielu | TX09D30VM1CCA |
| Značka | KOE |
| Veľkosť | 3.5 |
| Aplikácia | HHP |
| Rozhodnutie | 240×320 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 300:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | HITACHI |
| panelový model | TX09D30VM1CCA |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 240(RGB)×320 , QVGA |
| režim zobrazenia | TN, Normally White, TMR |
| aktívna oblasť | 53.64×71.52 mm |
| obrys | 64×86×7.9 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 300 : 1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193150% |
| Doba odozvy | 15/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | CMOS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | HHP |
| A035QN05 V1 | AUO | 3.5 | 320×240 |
| EL160.80.50 ET CC | Lumineq | 3.5 | 160×80 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LTV350QV-F09 | Samsung | 3.5 | 320×240 |
| NL2432DR22-02B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TX09D30VM1CCA | KOE | 3.5 | 240×320 |
| 28QVF1H | SII | 2.8 | 240×320 |
| 35HVE1H | SII | 3.5 | 320×480 |
| 35WVF0H | SII | 3.5 | 480×800 |
| DLC0240ACOG-3 | Other | 2.4 | 240×320 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ040Y3DX80 | SHARP | 4.0 | 480×800 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| TM030LDHT2 | Tianma | 3.0 | 240×400 |
