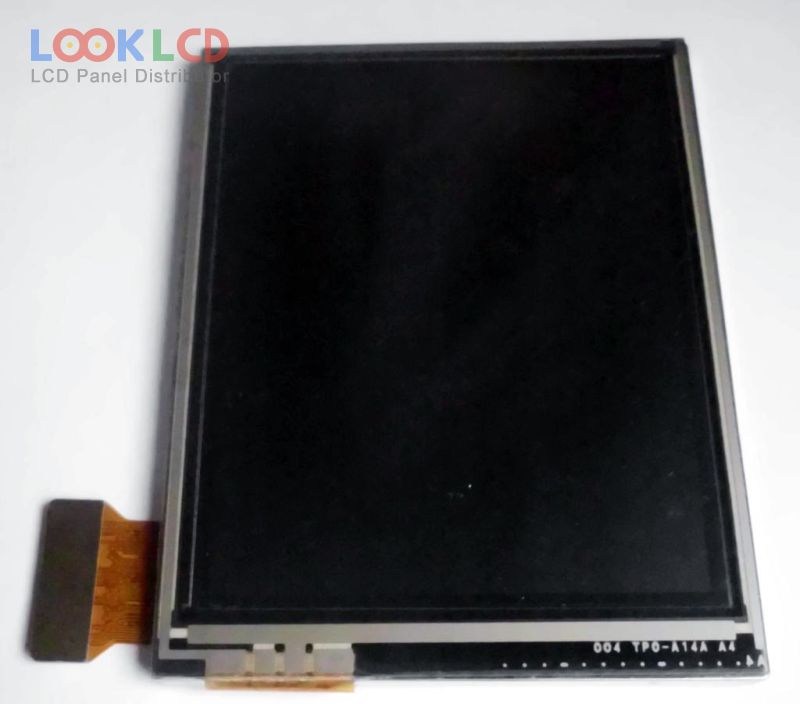

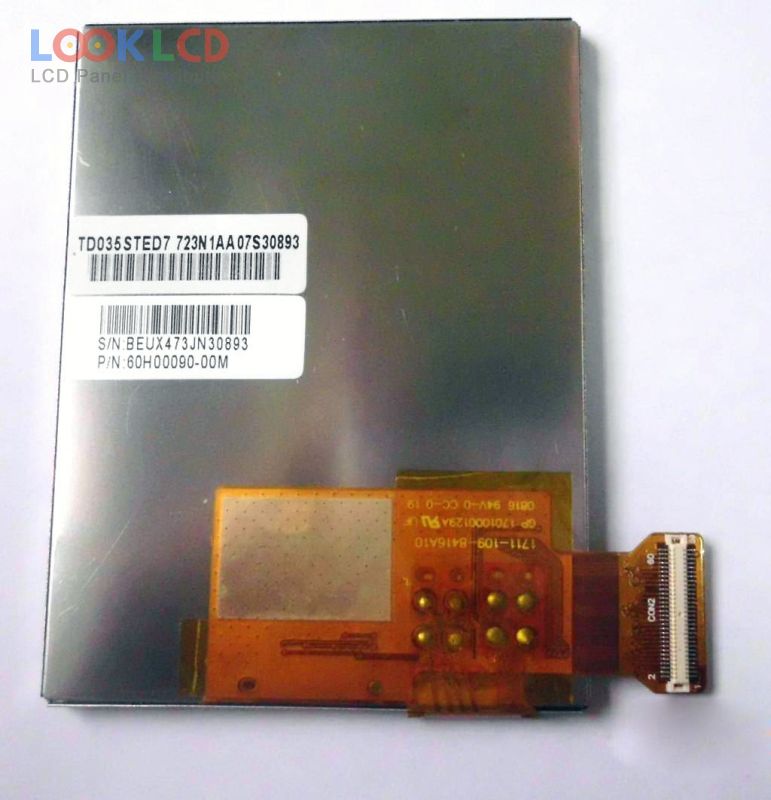

| Číslo dielu | TD035STED7 |
| Značka | TPO |
| Veľkosť | 3.5 |
| Aplikácia | PDA |
| Rozhodnutie | 240×320 |
| Zloženie | LCM |
| Jas | 115 |
| CR | 100:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | TPO |
| panelový model | TD035STED7 |
| typ panelu | LTPS TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 240(RGB)×320 , QVGA |
| režim zobrazenia | TN, Normally White, Transflective |
| aktívna oblasť | 53.28×71.04 mm |
| obrys | 64×85×5.5 mm |
| povrch | |
| jas | 115 cd/m² (Typ.) |
| kontrastný pomer | 100:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| zobraziť farby | 262K (6-bit), CIE193136% |
| Doba odozvy | 35 (Typ.)(Tr+Td) |
| pozorovací uhol | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit) + SPI, 60 pins |
| vstupné napätie | 2.8/2.8/5/10/-5.0V (Typ.)(VDD1/VDD2/AVDD/VGH/VVEE) |
| aplikácie | PDA |
| DLC0350TZG | Other | 3.5 | 240×320 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| PD035OX1 | E Ink | 3.5 | 320×234 |
| TD035SHED1 | TPO | 3.5 | 480×640 |
| TD035STEB1 | TPO | 3.5 | 240×320 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| TD035STED7 | TPO | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| LTP500GV-F01 | Samsung | 5.0 | 480×640 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
