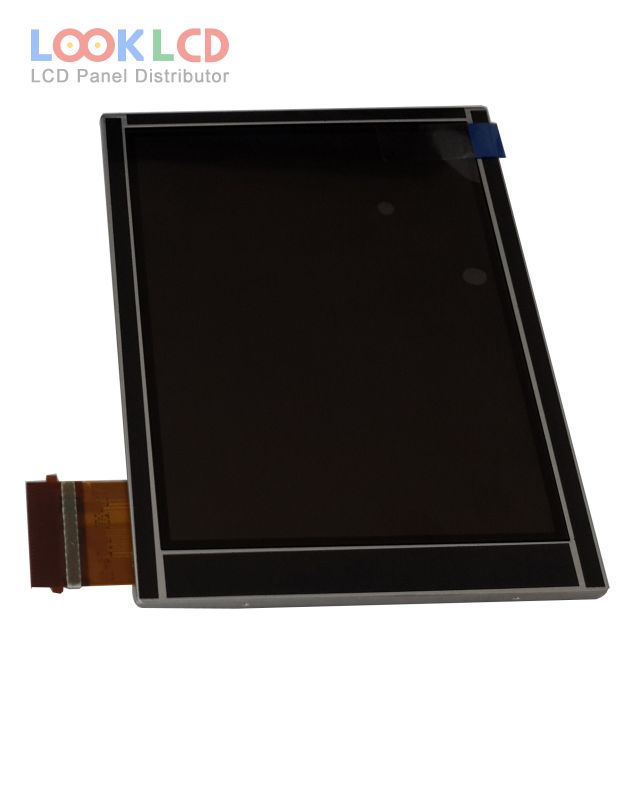

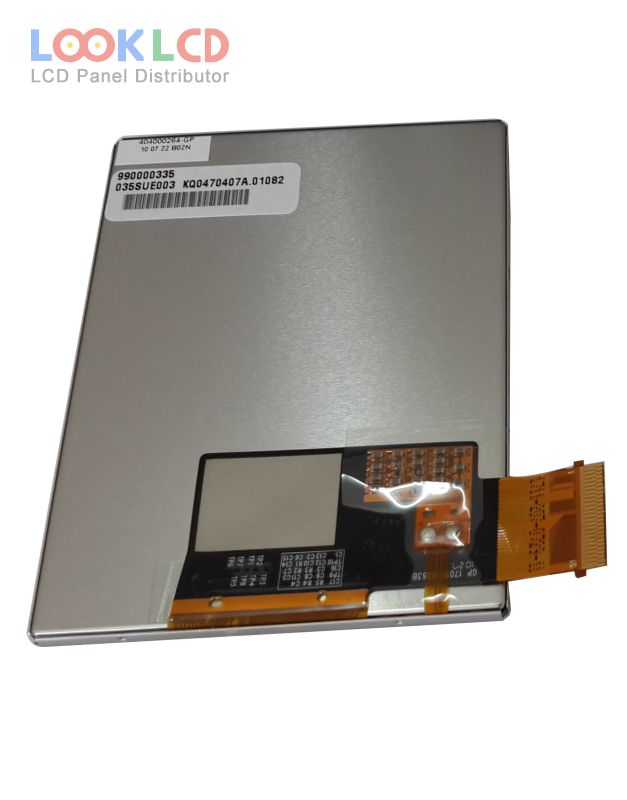

| Číslo dielu | TD035SHED1 |
| Značka | TPO |
| Veľkosť | 3.5 |
| Aplikácia | MPH |
| Rozhodnutie | 480×640 |
| Zloženie | LCM |
| Jas | 170 |
| CR | 200:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | TPO |
| panelový model | TD035SHED1 |
| typ panelu | LTPS TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 480(RGB)×640 , VGA |
| režim zobrazenia | TN, Normally White, Transflective |
| aktívna oblasť | 53.28×71.04 mm |
| obrys | 64×85 mm |
| povrch | |
| jas | 170 cd/m² (Typ.) |
| kontrastný pomer | 200:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| zobraziť farby | 262K (6-bit), CIE193137% |
| Doba odozvy | 35 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit) + SPI, 51 pins |
| vstupné napätie | 3.0/3.0V (Typ.)(VDC/VDDIO) |
| aplikácie | MPH |
