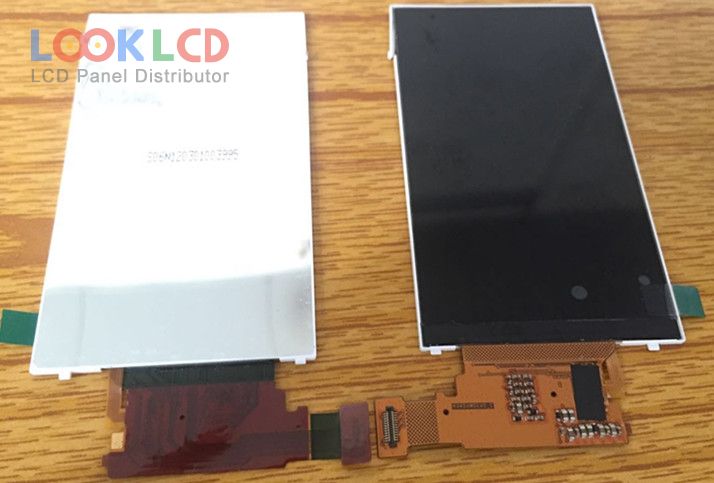

| Číslo dielu | H345VW01 V0 |
| Značka | AUO |
| Veľkosť | 3.5 |
| Aplikácia | MPH |
| Rozhodnutie | 480×800 |
| Zloženie | LCM |
| Jas | 320 |
| CR | 500:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | MIPI |
| značka panelu | AUO |
| panelový model | H345VW01 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 480(RGB)×800 , WVGA |
| režim zobrazenia | VA, Normally Black, Transmissive |
| aktívna oblasť | 45.072×75.12 mm |
| obrys | 49.02×83.52 mm |
| povrch | |
| jas | 320 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Min.) |
| zobraziť farby | 16.7M (8-bit), CIE193170% |
| Doba odozvy | 50/50 (Max.)(Tr/Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1S6PWLEDWithout Driver |
| signálové rozhranie | MIPI (2 data lanes), 24 pins |
| vstupné napätie | 1.8/2.8V (Typ.)(VDDI/VDD) |
| aplikácie | MPH |
