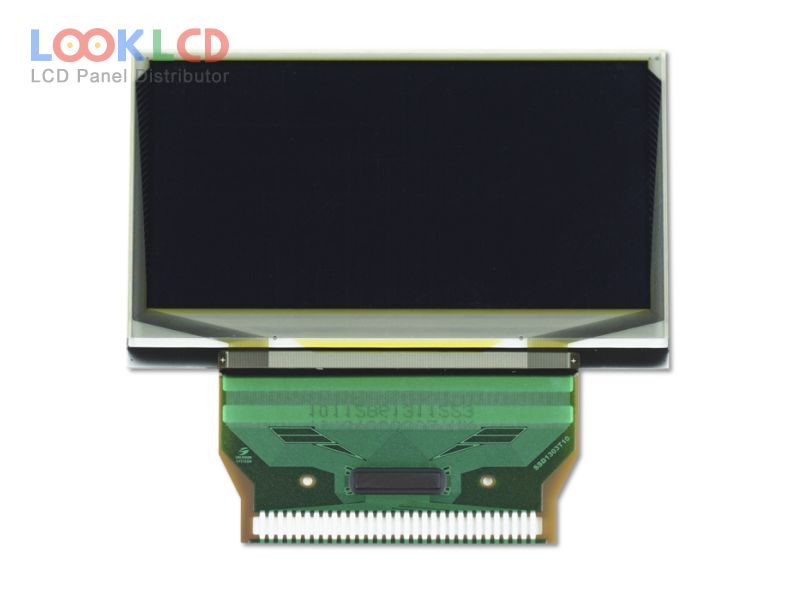

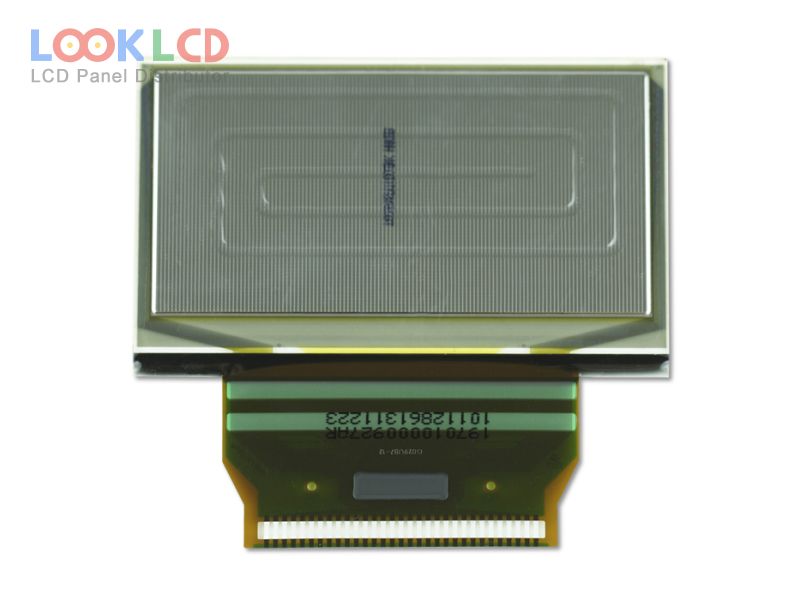

| Číslo dielu | RGS24128064YW004 |
| Značka | RiTdisplay |
| Veľkosť | 2.4 |
| Aplikácia | IA |
| Rozhodnutie | 128×64 |
| Zloženie | OLED |
| Jas | 80 |
| CR | 2000:1 |
| Farby | Mono(Yellow) |
| Podsvietenie | self |
| Rozhranie | CPU/SPI/I²C |
| značka panelu | RiTdisplay |
| panelový model | RGS24128064YW004 |
| typ panelu | PM-OLED , OLED |
| veľkosť panelu | 2.4 inch |
| rozhodnutie | 128×64 |
| aktívna oblasť | 55.01×27.49 mm |
| obrys | 60.5×37×2.11 mm |
| povrch | Antiglare |
| jas | 80 cd/m² (Typ.) |
| kontrastný pomer | 2000 : 1 (Min.) |
| zobraziť farby | Mono(Yellow) (1-bit) |
| pozorovací uhol | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvencia | 105Hz |
| vodič ic | TAB Built-in SSD1303 |
| signálové rozhranie | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| vstupné napätie | 13.0/2.7V (Typ.)(VCC/VDD) |
| aplikácie | IA |
| 24QVF1J | SII | 2.4 | 240×320 |
| AMCB004 | Samsung | 2.4 | 240×320 |
| LS024J3LX01 | SHARP | 2.4 | 320×480 |
| LS024Q3UX05 | SHARP | 2.4 | 240×320 |
| LS024Q8DD92 | SHARP | 2.4 | 240×320 |
| RGS24128022YR000 | RiTdisplay | 2.4 | 128×22 |
| RGS24128064WW001 | RiTdisplay | 2.4 | 128×64 |
| RGS24128064YW004 | RiTdisplay | 2.4 | 128×64 |
| RGS24128064YW005 | RiTdisplay | 2.4 | 128×64 |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| AA104XD02 | Mitsubishi | 10.4 | 1024×768 |
| EL640.480-AG1 ET | Lumineq | 8.1 | 640×480 |
| G101ICE-L01 | Innolux | 10.1 | 1280×800 |
| KG057QV1CA-G000 | Kyocera | 5.7 | 320×240 |
| LTB190E3-L01 | Samsung | 19.0 | 1280×1024 |
| SX25S004 | KOE | 10.0 | 800×600 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
| TX20D16VM2BAA | KOE | 8.0 | 800×480 |
| UG-2896GDEAF11 | WiseChip | 1.3 | 128×96 |
| UG-5664ASGEF01 | WiseChip | 3.1 | 256×64 |
