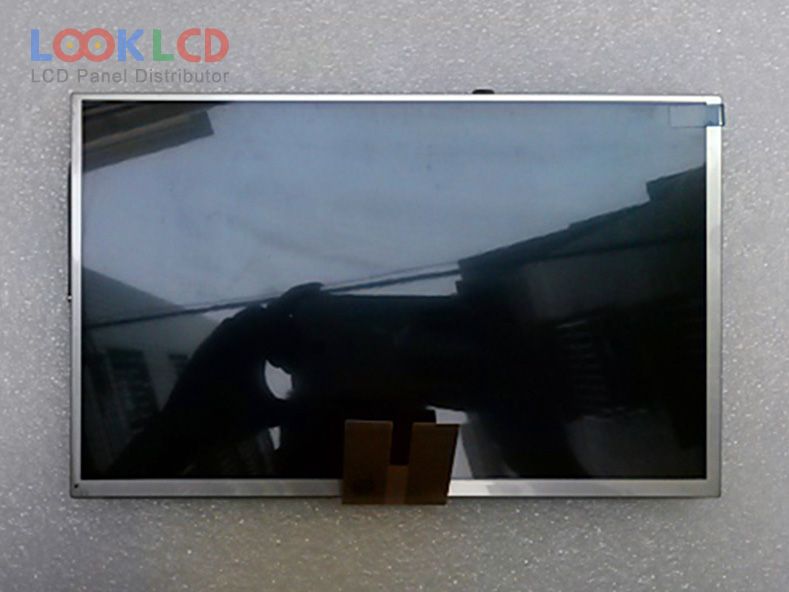

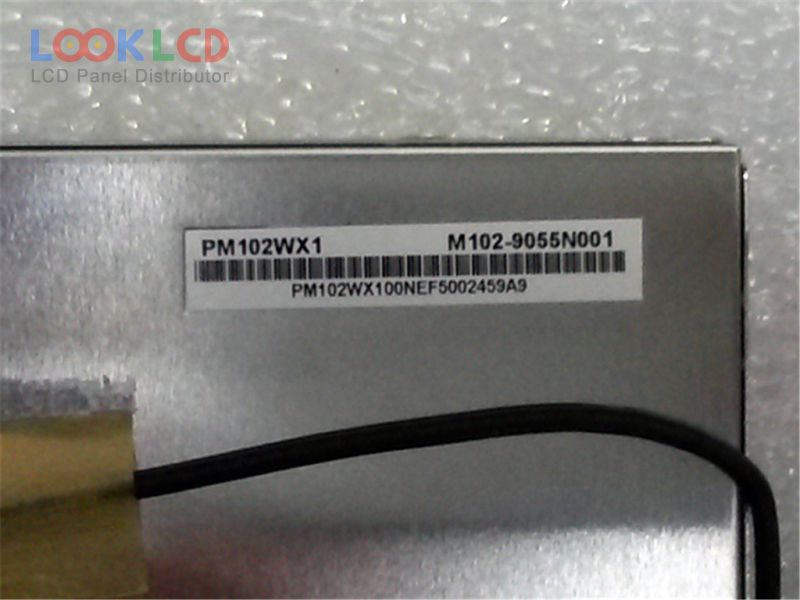

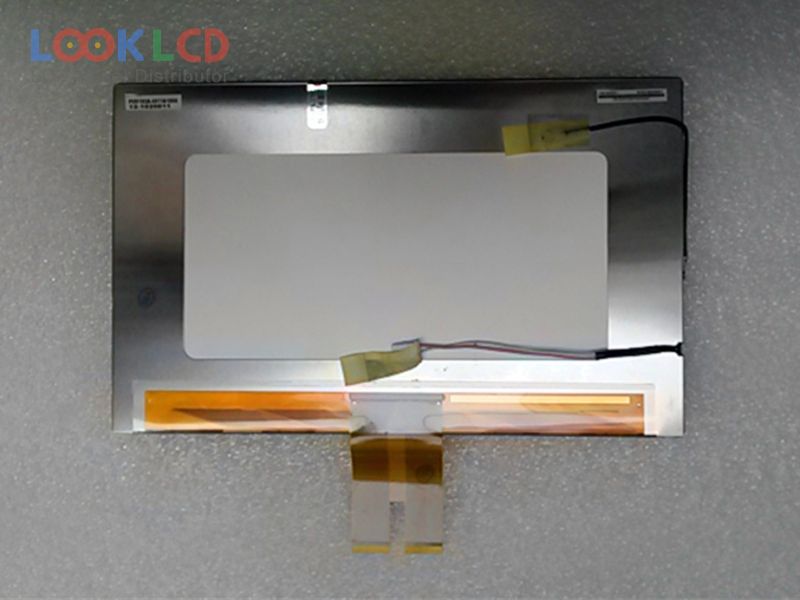

| Číslo dielu | PM102WX1 |
| Značka | E Ink |
| Veľkosť | 10.2 |
| Aplikácia | DPF |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 400:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | PVI |
| panelový model | PM102WX1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.2 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 222×132.48 mm |
| obrys | 235×145.8×6.5 mm |
| povrch | Antiglare |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 400:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 15/25 (Typ.)(Tr/Td) |
| pozorovací uhol | 60/60/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | TTL (1 ch, 6-bit), 60 pins |
| vstupné napätie | 3.3/3.3/8.8/17.0/-10.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| aplikácie | DPF |
