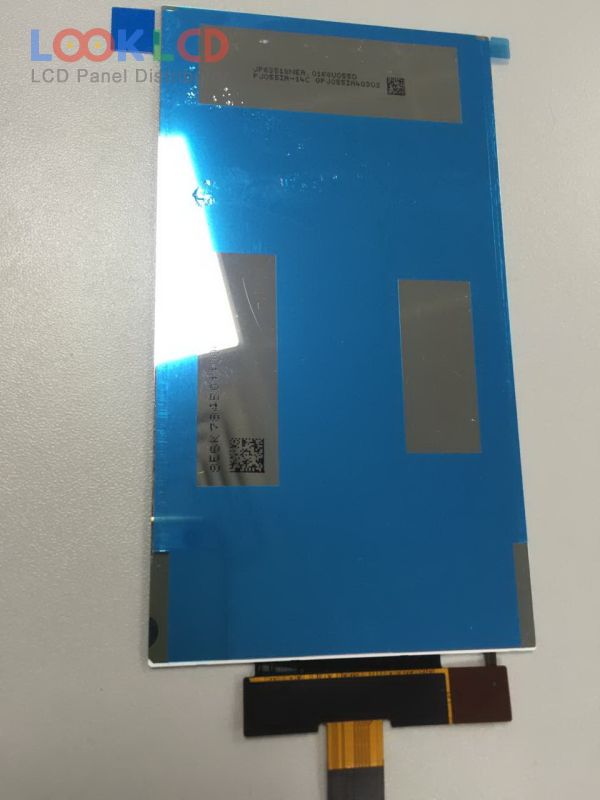

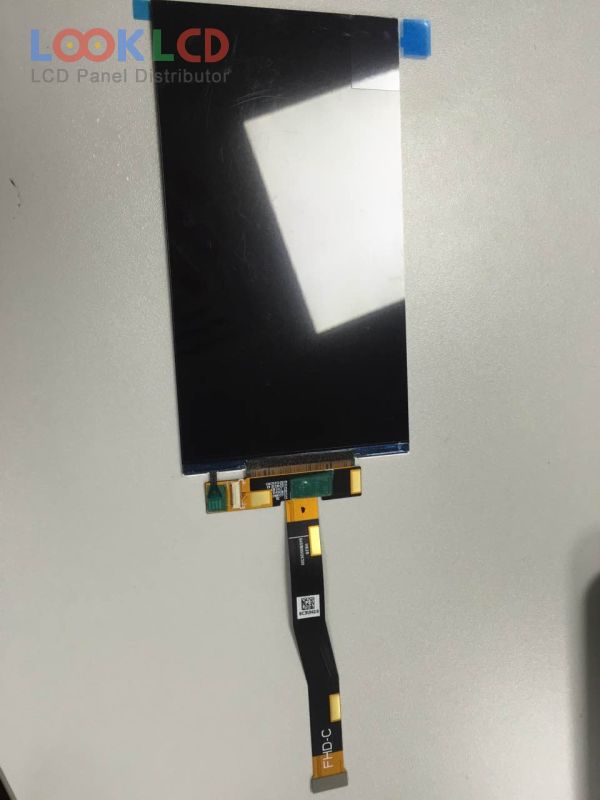

| Číslo dielu | PJ055IA-14C |
| Značka | Innolux |
| Veľkosť | 5.5 |
| Aplikácia | MPH |
| Rozhodnutie | 1080×1920 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | MIPI |
| značka panelu | INNOLUX |
| panelový model | PJ055IA-14C |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.5 inch |
| rozhodnutie | 1080(RGB)×1920 , FHD |
| režim zobrazenia | AAS, Normally Black, Transmissive |
| aktívna oblasť | 68.04×120.96 mm |
| obrys | 70.44×70.4413×1.4 mm |
| povrch | Glare (Haze 0%), Hard coating |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193171% |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhranie | MIPI (4 data lanes), 40 pins |
| vstupné napätie | 1.8/5.7/-5.7V (Typ.)(IOVCC/VSP/VSN) |
| aplikácie | MPH |
