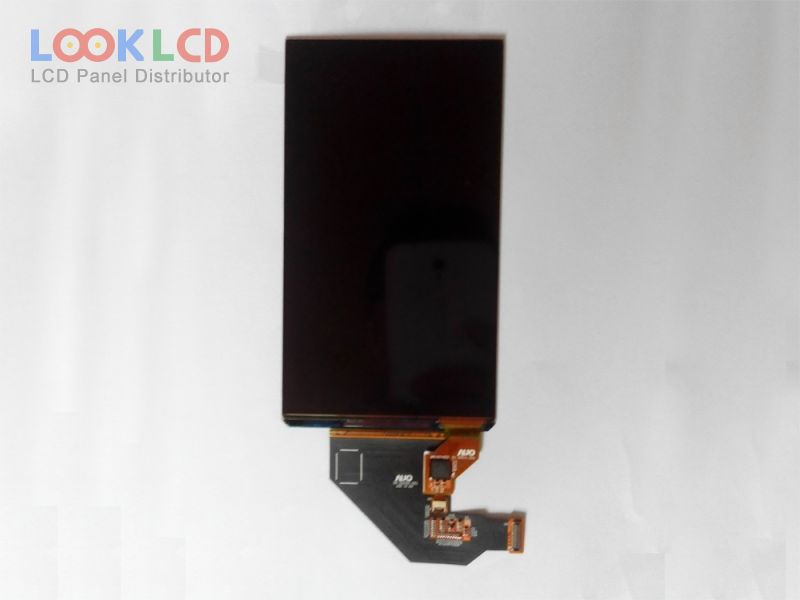

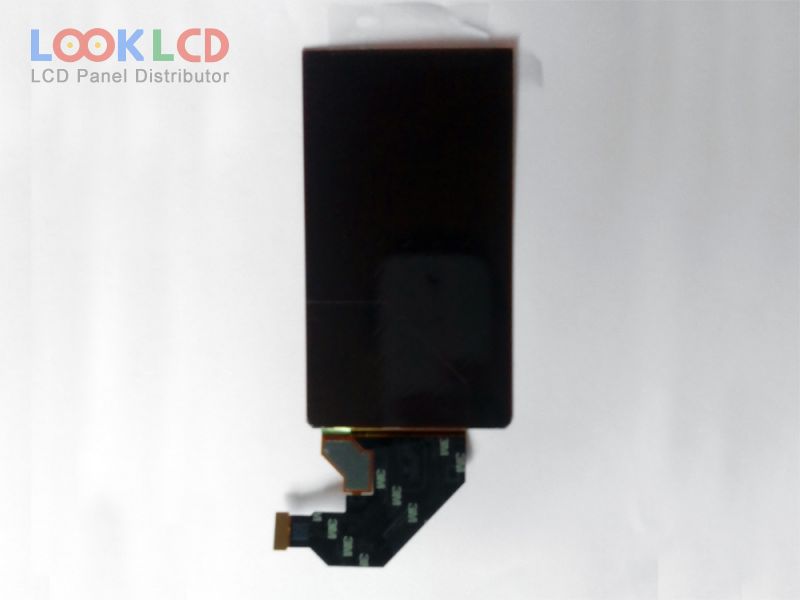

| Číslo dielu | H546DLB01.1 |
| Značka | AUO |
| Veľkosť | 5.5 |
| Aplikácia | MPH |
| Rozhodnutie | 1080×1920 |
| Zloženie | OLED |
| Jas | 350 |
| CR | 10000:1 |
| Farby | 16.7M |
| Podsvietenie | self |
| Rozhranie | MIPI |
| značka panelu | AUO |
| panelový model | H546DLB01.1 |
| typ panelu | AM-OLED , OLED |
| veľkosť panelu | 5.5 inch |
| rozhodnutie | 1080(RGB)×1920 , FHD |
| aktívna oblasť | 68.04×120.96 mm |
| obrys | 70.84×128.01 mm |
| povrch | Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 10000 : 1 (Min.) |
| zobraziť farby | 16.7M (8-bit), CIE1931103% |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥1600)(L/R/U/D) |
| vodič ic | COG Built-in RM69070 |
| signálové rozhranie | MIPI (2 data lanes), 40 pins |
| vstupné napätie | 1.8/3.0/4.6/7.6V (Typ.)(IOVCC/VCI/OVDD/AVDD) |
| aplikácie | MPH |
