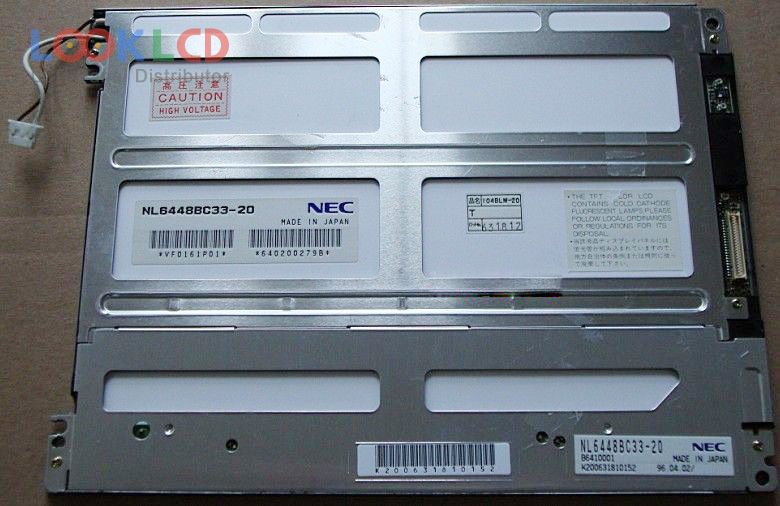

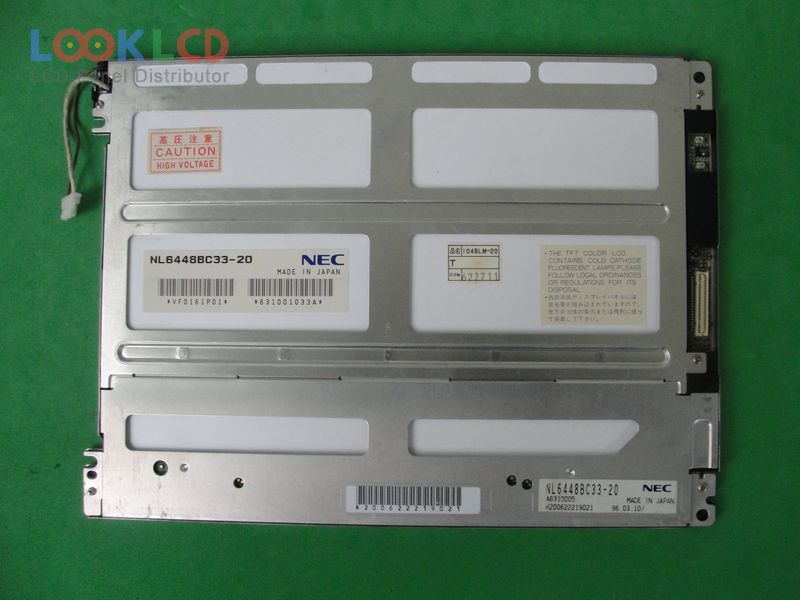

| Číslo dielu | NL6448BC33-20 |
| Značka | NLT |
| Veľkosť | 10.4 |
| Aplikácia | IA |
| Rozhodnutie | 640×480 |
| Zloženie | LCM |
| Jas | |
| CR | |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | NEC |
| panelový model | NL6448BC33-20 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 640(RGB)×480 , VGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 211.2×158.4 mm |
| povrch | |
| jas | |
| kontrastný pomer | |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | |
| pozorovací uhol | |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | CMOS (1 ch, 6-bit), 41 pins |
| aplikácie | IA |
