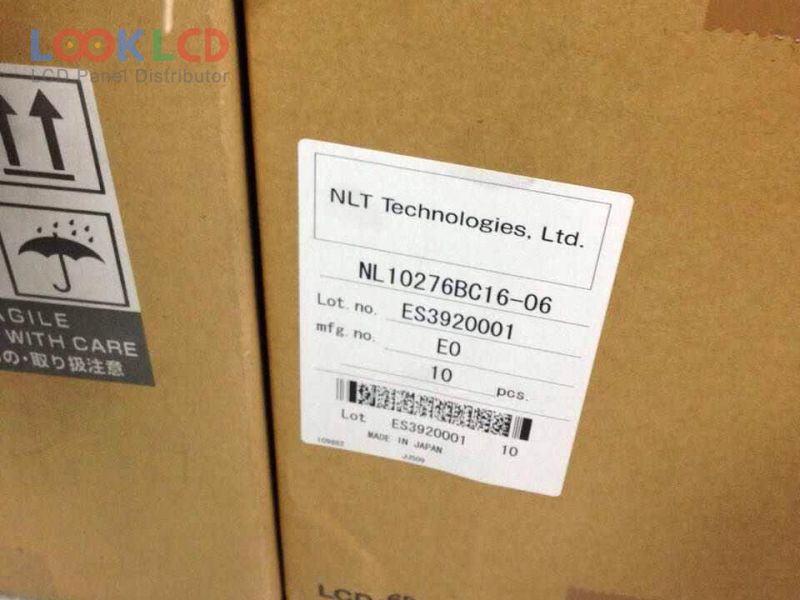

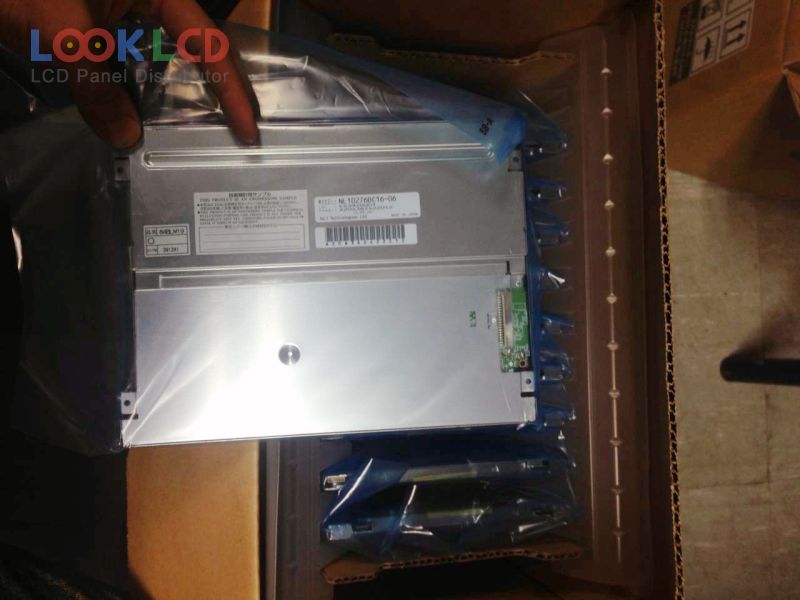

| Číslo dielu | NL10276BC16-06 |
| Značka | NLT |
| Veľkosť | 8.4 |
| Aplikácia | IA |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 600 |
| CR | 1000:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | NEC |
| panelový model | NL10276BC16-06 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.4 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | UA-SFT, Normally Black, Transmissive |
| aktívna oblasť | 170.496×127.872 mm |
| obrys | 200×152×8.7 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 600 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| Doba odozvy | 13/12 (Typ.)(Tr/Td) |
| pozorovací uhol | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 stringsWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
