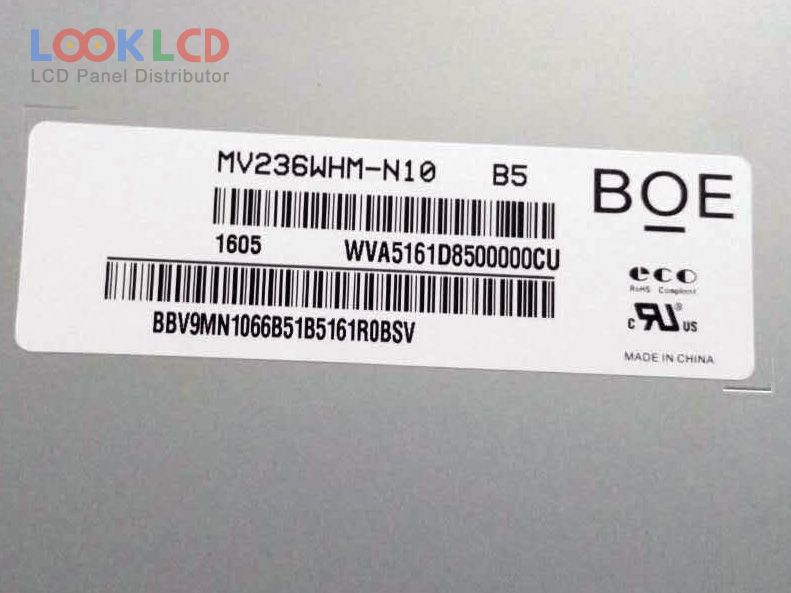

| Číslo dielu | MV236WHM-N10 |
| Značka | BOE |
| Veľkosť | 23.6 |
| Aplikácia | DMPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | BOE |
| panelový model | MV236WHM-N10 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 23.6 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | ADS, Normally Black, Transmissive |
| aktívna oblasť | 521.471×293.184 mm |
| obrys | 544.8×320.5 mm |
| povrch | Antiglare (Haze 1%), Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193174% |
| Doba odozvy | 14 (Typ.)(G to G) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 14S2PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 30 pins |
| vstupné napätie | 12.0V (Typ.) |
| aplikácie | DMPC |
| HV236WHB-N00 | BOE | 23.6 | 1366×768 |
| M236H1-L07 | Innolux | 23.6 | 1920×1080 |
| M236H3-L05 | Innolux | 23.6 | 1920×1080 |
| M236H3-LA2 | Innolux | 23.6 | 1920×1080 |
| M236H3-LA3 | Innolux | 23.6 | 1920×1080 |
| M236HJJ-P02 | Innolux | 23.6 | 1920×1080 |
| MV236WHM-N10 | BOE | 23.6 | 1366×768 |
| V236BJ1-P01 Rev.C3 | Innolux | 23.6 | 1366×768 |
| V236BJ1-P02 | Innolux | 23.6 | 1366×768 |
| HT170E02-100 | BOE | 17.0 | 1280×1024 |
| LM215WF3-SLA2 | LG Display | 21.5 | 1920×1080 |
| LM215WF4-TLE1 | LG Display | 21.5 | 1920×1080 |
| LM215WF5-SLA1 | LG Display | 21.5 | 1920×1080 |
| LM230WF5-TRC2 | LG Display | 23.0 | 1920×1080 |
| LTM170E8-L02 | Samsung | 17.0 | 1280×1024 |
| LTM170EX-L31 | Samsung | 17.0 | 1280×1024 |
| M190EG02 V4 | AUO | 19.0 | 1280×1024 |
| MT220WW01 V.5 | Innolux | 22.0 | 1680×1050 |
| TX43D14VC0CAB | KOE | 17.0 | 1280×1024 |
