| Číslo dielu | M236H3-L05 |
| Značka | Innolux |
| Veľkosť | 23.6 |
| Aplikácia | DMPC |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CHIMEI INNOLUX |

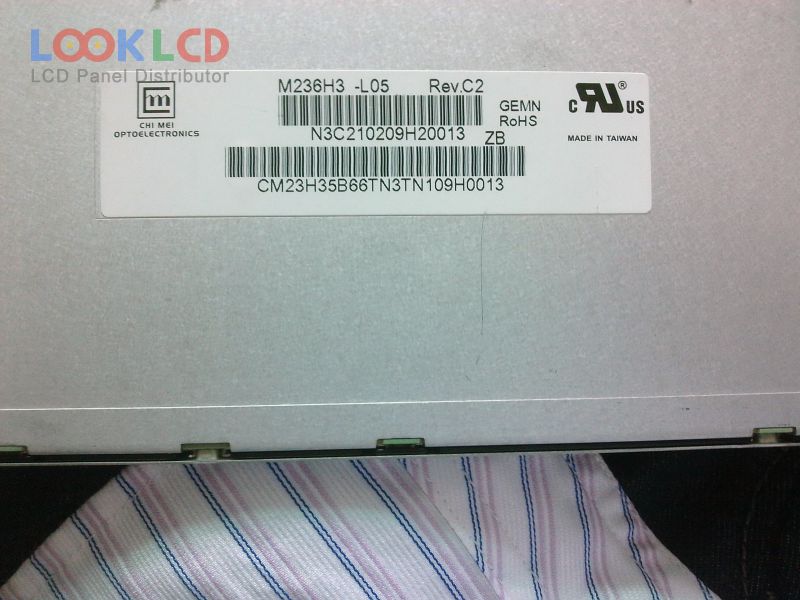

| panelový model | M236H3-L05 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 23.6 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 521.28×293.22 mm |
| obrys | 544.8×320.5 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit) |
| Doba odozvy | 1.5/3.5 (Typ.)(Tr/Td) |
| pozorovací uhol | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 120Hz |
| typ lampy | 12S6PWLEDWithout Driver |
| signálové rozhranie | LVDS (4 ch, 8-bit), 66 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
