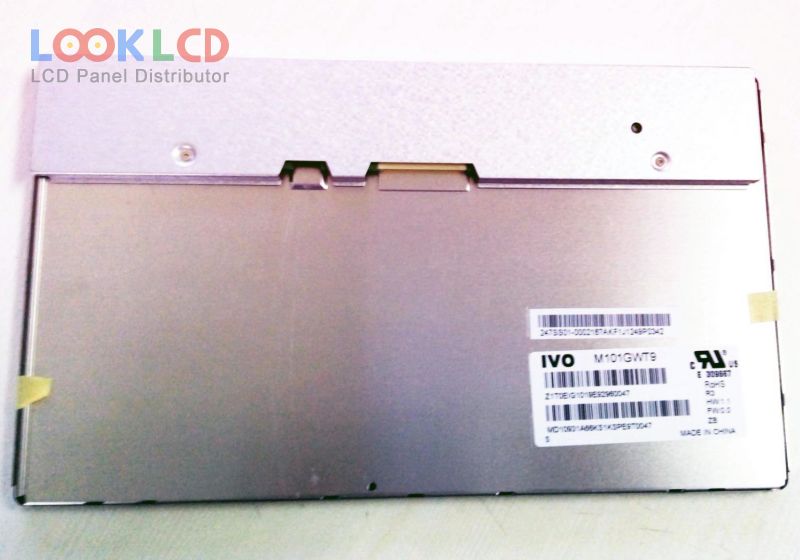

| Číslo dielu | M101GWT9 R3 |
| Značka | IVO |
| Veľkosť | 10.1 |
| Aplikácia | CNS |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 640 |
| CR | 800:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | IVO |
| panelový model | M101GWT9 R3 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 222.72×125.28 mm |
| obrys | 244×143×12.9 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 640 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 16 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S2PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | CNS |
