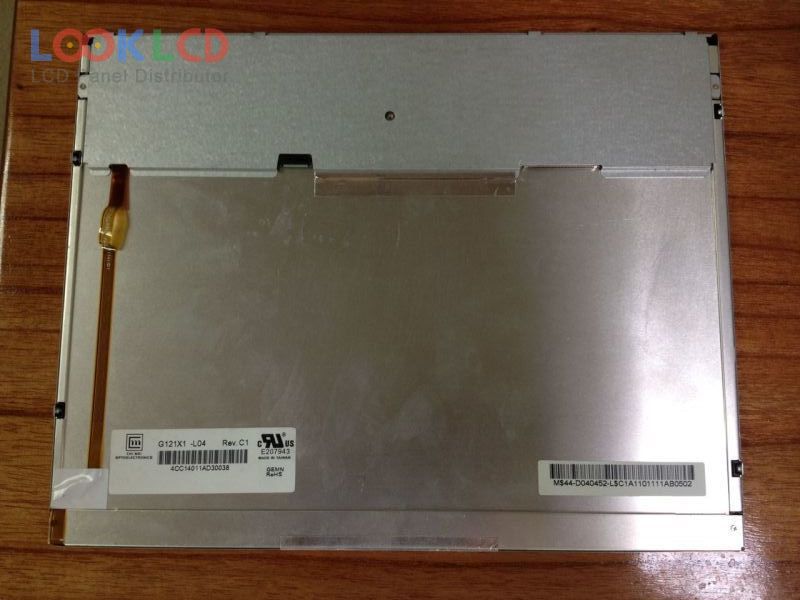

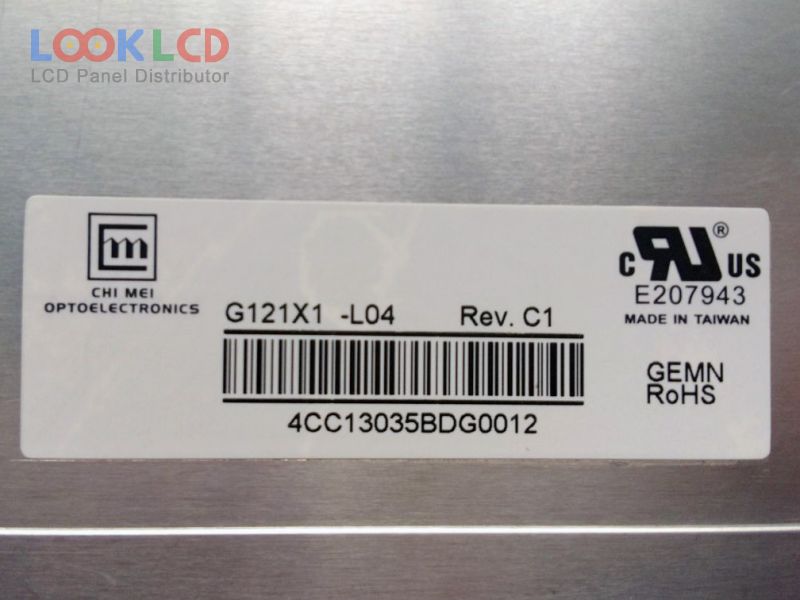

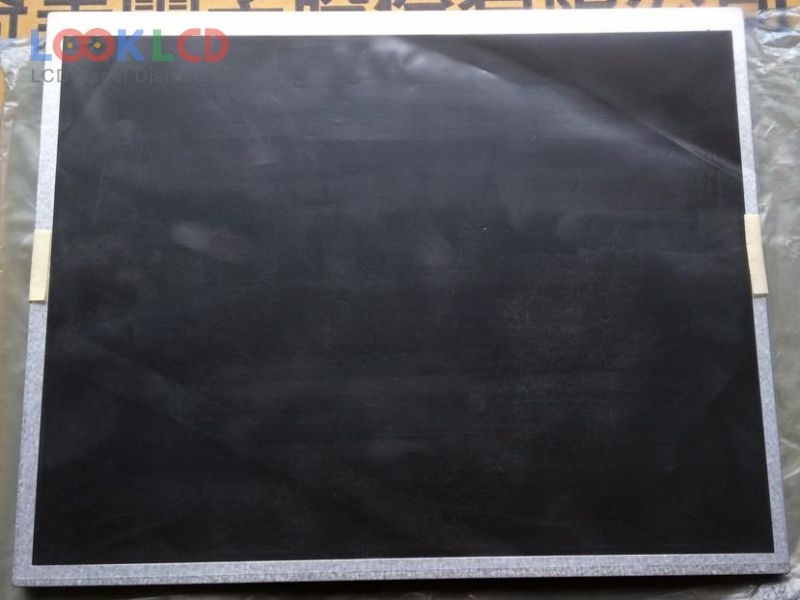

| Číslo dielu | G121X1-L04 |
| Značka | Innolux |
| Veľkosť | 12.1 |
| Aplikácia | CNS |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 500 |
| CR | 700:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CMO |
| panelový model | G121X1-L04 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 245.76×184.32 mm |
| obrys | 260.5×204×7.7 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC), CIE193163% |
| Doba odozvy | 5/11 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupné napätie | 3.3/5.0V (Typ.) |
| aplikácie | CNS |
| G121AGE-L03 | Innolux | 12.1 | 800×600 |
| G121SN01 V1 | AUO | 12.1 | 800×600 |
| G121X1-L01 | Innolux | 12.1 | 1024×768 |
| G121X1-L03 | Innolux | 12.1 | 1024×768 |
| G121X1-L04 | Innolux | 12.1 | 1024×768 |
| G121XN01 V0 | AUO | 12.1 | 1024×768 |
| G121XTN01.0 | AUO | 12.1 | 1024×768 |
| HSD121PHW2-A00 | HannStar | 12.1 | 1366×768 |
| LQ121S1LG75 | SHARP | 12.1 | 800×600 |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| FG0700G3DSSWBGL4 | Data Image | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| LQ6BW506 | SHARP | 5.8 | 400×234 |
