| Číslo dielu | C070VW04 V6 |
| Značka | AUO |
| Veľkosť | 7.0 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | AUO |

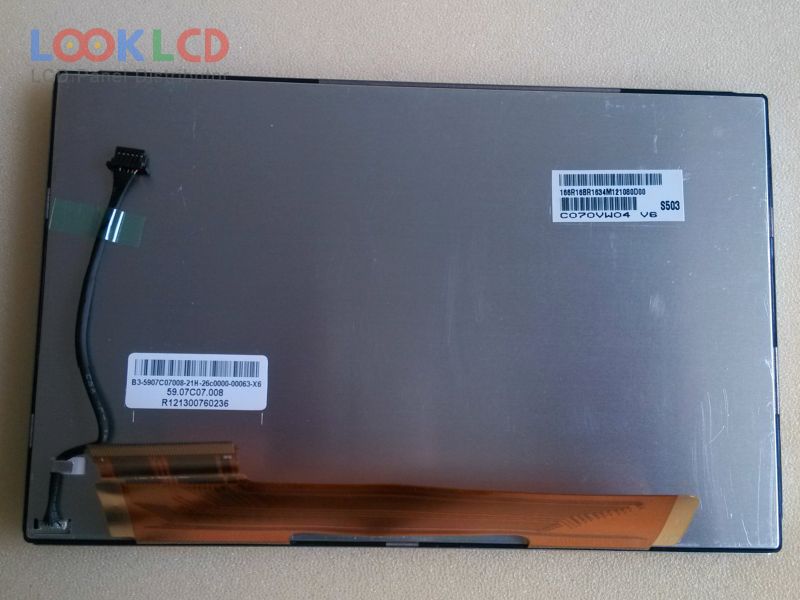

| panelový model | C070VW04 V6 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | AMVA, Normally Black, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 164.55×105.1×8.78 mm |
| povrch | Glare (Haze 0%), Antireflection |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193155% |
| Doba odozvy | 10/25 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S3PWLEDWithout Driver |

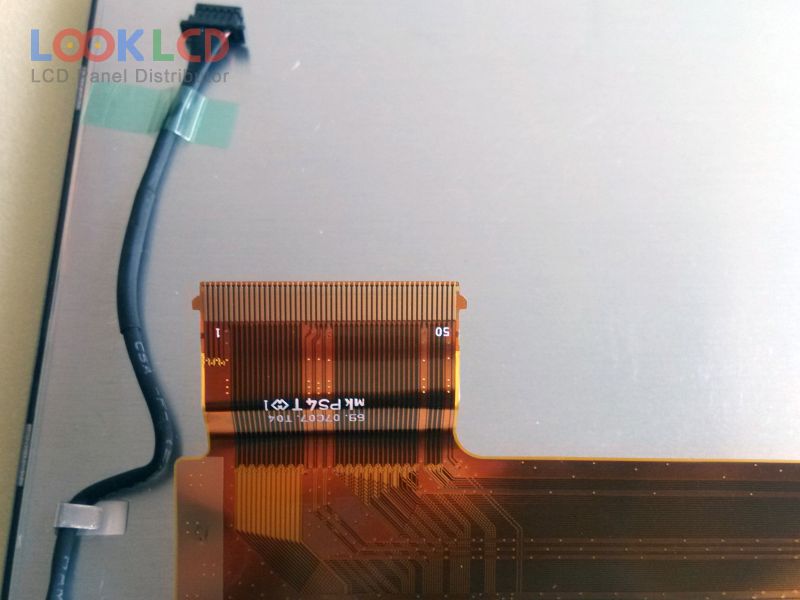

| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 50 pins |
| vstupné napätie | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikácie | CNS |
