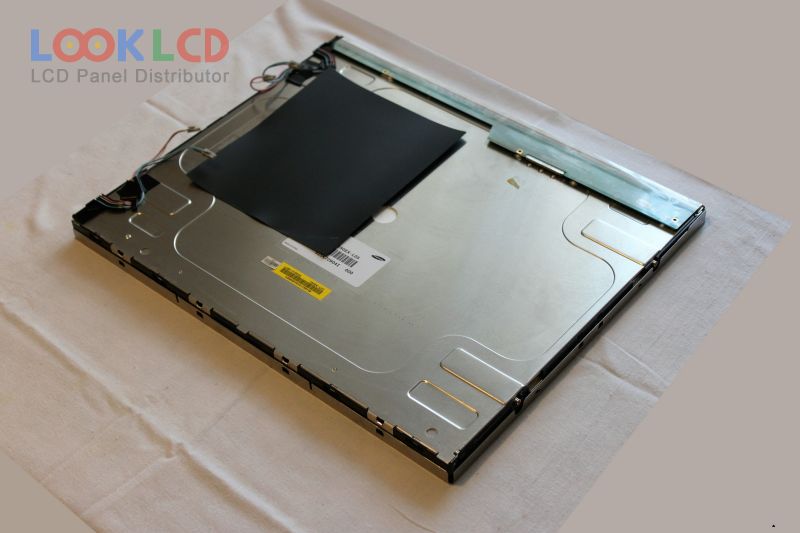

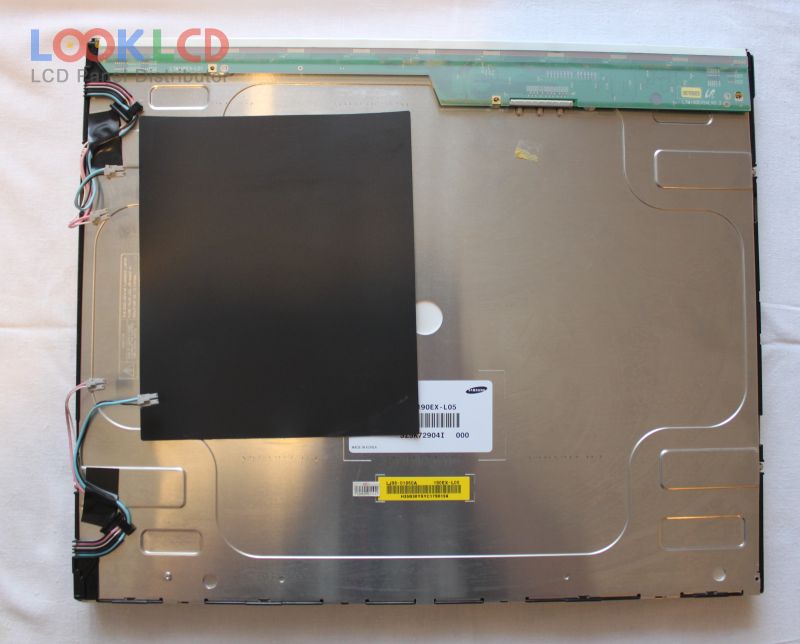

| Číslo dielu | LTM190EX-L05 |
| Značka | Samsung |
| Veľkosť | 19.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1280×1024 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 700:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTM190EX-L05 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 19.0 inch |
| rozhodnutie | 1280(RGB)×1024 , SXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 376.32×301.056 mm |
| obrys | 396×324×17 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 1.7/6.3 (Typ.)(Tr/Td) |
| pozorovací uhol | 75/75/75/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
