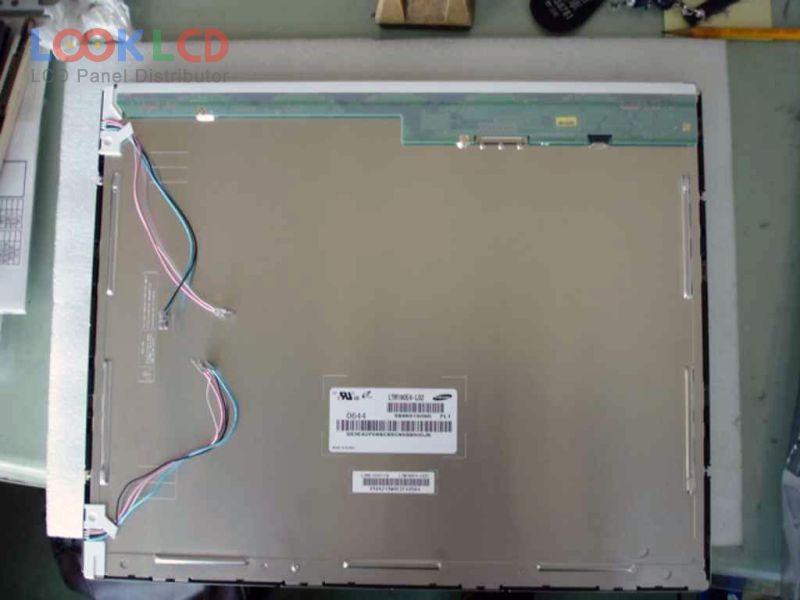

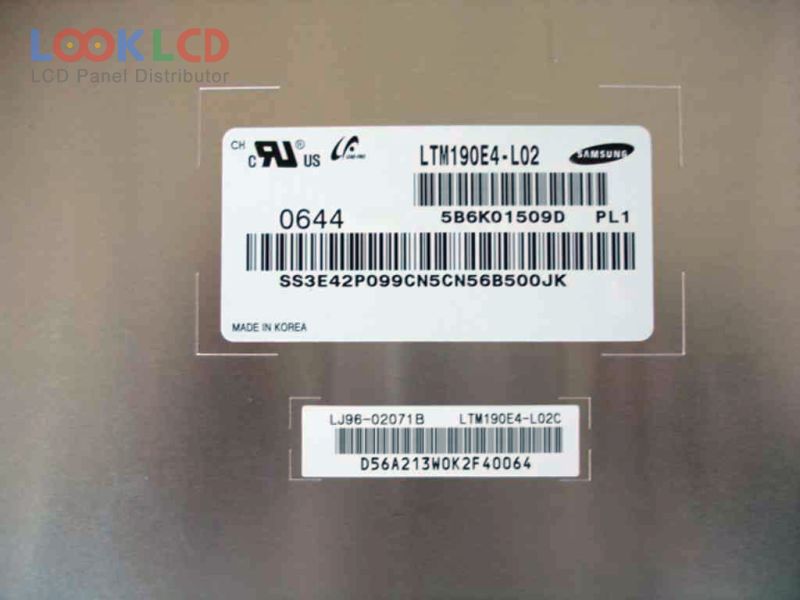

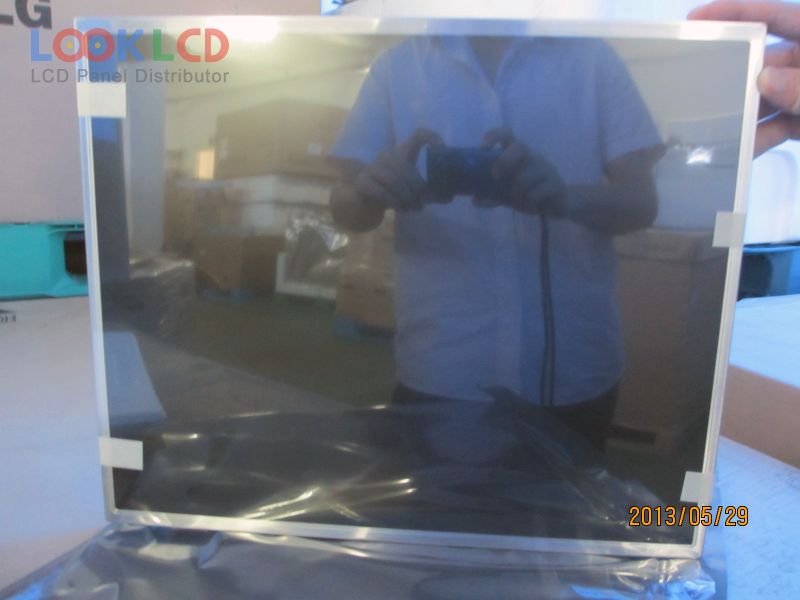

| Číslo dielu | LTM190E4-L02 |
| Značka | Samsung |
| Veľkosť | 19.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1280×1024 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 1500:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTM190E4-L02 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 19.0 inch |
| rozhodnutie | 1280(RGB)×1024 , SXGA |
| režim zobrazenia | PVA, Normally Black, Transmissive |
| aktívna oblasť | 376.32×301.056 mm |
| obrys | 396×324×17 mm |
| povrch | Antiglare (Haze 44%), Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 1500:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 13/7 (Typ.)(Tr/Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
| LTM190BT03 | Samsung | 19.0 | 1440×900 |
| LTM190BT07 | Samsung | 19.0 | 1440×900 |
| LTM190E1-L03 | Samsung | 19.0 | 1280×1024 |
| LTM190E4-L02 | Samsung | 19.0 | 1280×1024 |
| LTM190E4-L03 | Samsung | 19.0 | 1280×1024 |
| LTM190ET01 | Samsung | 19.0 | 1280×1024 |
| LTM190EX-L05 | Samsung | 19.0 | 1280×1024 |
| LTM190EX-L21 | Samsung | 19.0 | 1280×1024 |
| LTM190EX-L31 | Samsung | 19.0 | 1280×1024 |
| LTM190M2-L31(Glare) | Samsung | 19.0 | 1440×900 |
| CLAA150XA03 | CPT | 15.0 | 1024×768 |
| HT185WX1-100 | BOE | 18.5 | 1366×768 |
| LM230WF3-SLQ1 | LG Display | 23.0 | 1920×1080 |
| LM240WU3-TLD1 | LG Display | 24.0 | 1920×1200 |
| LM270WF2-TLA5 | LG Display | 27.0 | 1920×1080 |
| LM270WF5-SSC1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SDA2 | LG Display | 27.0 | 2560×1440 |
| LTM150XS-T01 | Samsung | 15.0 | 1024×768 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| M185XTN01.2 | AUO | 18.5 | 1366×768 |
