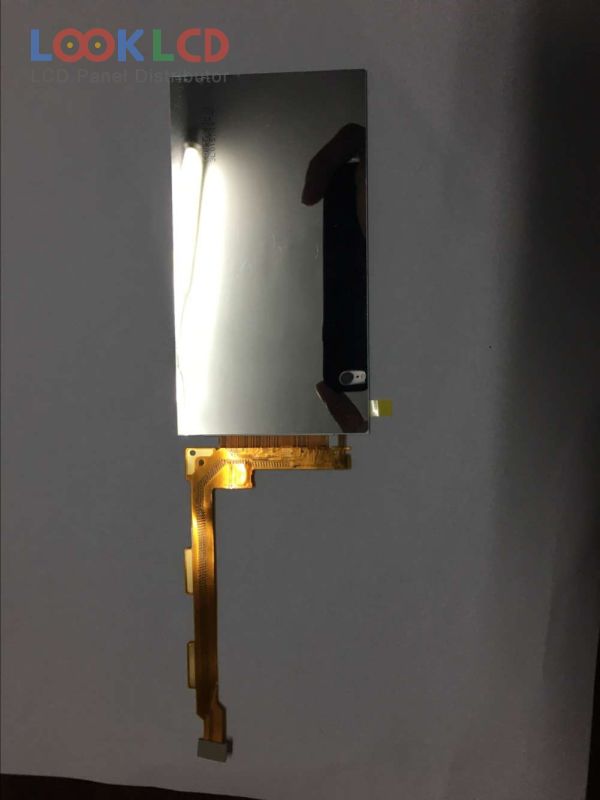

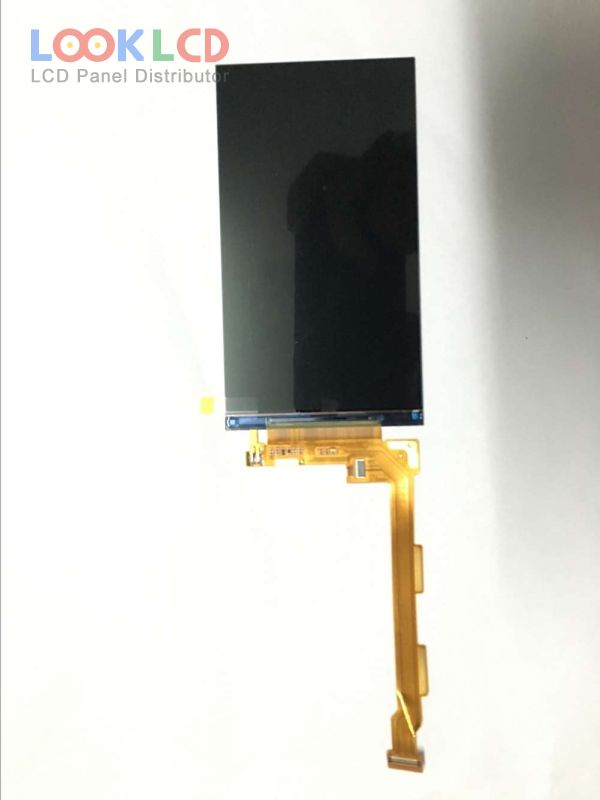

| Číslo dielu | LQ047K3SX06 |
| Značka | SHARP |
| Veľkosť | 4.7 |
| Aplikácia | MPH |
| Rozhodnutie | 720×1280 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | MIPI |
| značka panelu | SHARP |
| panelový model | LQ047K3SX06 |
| typ panelu | IGZO TFT-LCD , LCM |
| veľkosť panelu | 4.7 inch |
| rozhodnutie | 720(RGB)×1280 , WXGA |
| režim zobrazenia | New Mode2, Normally Black, Transmissive |
| aktívna oblasť | 58.104×103.296 mm |
| obrys | 61.05×112.09×1.52 mm |
| povrch | Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193170% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 10S1PWLEDWithout Driver |
| signálové rozhranie | MIPI (4 data lanes), 40 pins |
| vstupné napätie | 1.8/5.0/-5.0V (Typ.)(IOVCC/AVDD/AVEE) |
| aplikácie | MPH |
| AMS470GS16-1 | Samsung | 4.7 | 720×1280 |
| DMF50081NB-FW | Kyocera | 4.7 | 320×240 |
| H466TAN01.0 | AUO | 4.7 | 720×1280 |
| H466TAN01.1 | AUO | 4.7 | 720×1280 |
| H466TAN02.4 | AUO | 4.7 | 720×1280 |
| LH470WX6-SD01 | LG Display | 4.7 | 750×1334 |
| LM32K101 | SHARP | 4.7 | 320×240 |
| LQ047K3SX06 | SHARP | 4.7 | 720×1280 |
| LQ047K3SX08 | SHARP | 4.7 | 720×1280 |
| TS047NAARB01-00 | Tianma | 4.7 | 480×272 |
| AMS369FG03-002 | Samsung | 3.7 | 480×800 |
| AMS529HA01 | Samsung | 5.3 | 800×1280 |
| BA060WV1-100 CELL | BOE | 6.0 | 480×854 |
| CT035TN02 | Innolux | 3.5 | 320×480 |
| LMS320HF46 | Samsung | 3.2 | 240×432 |
| LS028B8PX05 | SHARP | 2.8 | 240×400 |
| LS030Y7PW01 | SHARP | 3.0 | |
| LS032B7LX02 | SHARP | 3.2 | 320×480 |
| LS050T1SX12(K) | SHARP | 5.0 | 1080×1920 |
| LTM024DC9B | TOSHIBA | 2.4 | 240×320 |
