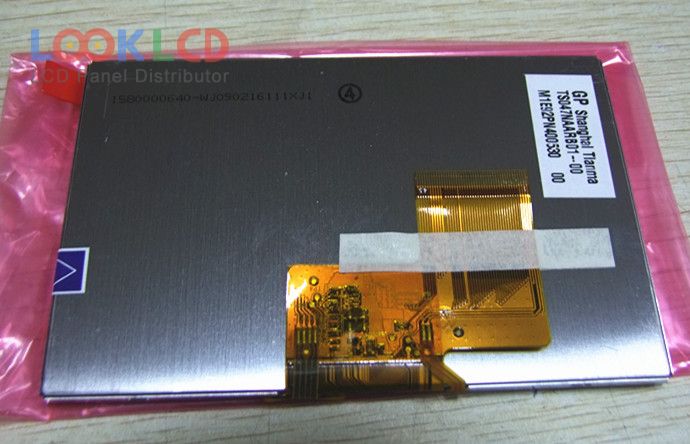

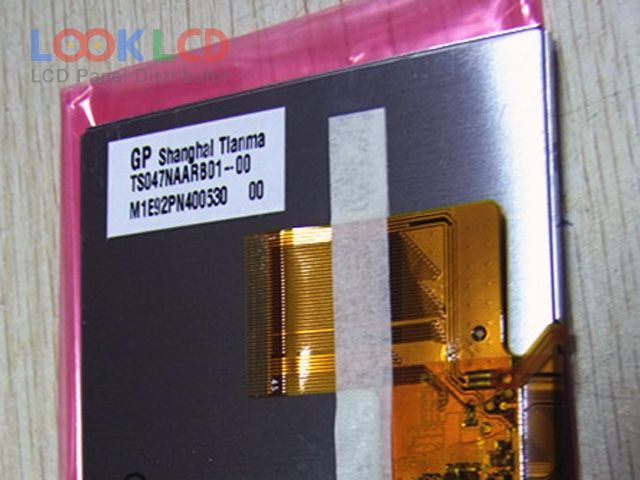

| Číslo dielu | TS047NAARB01-00 |
| Značka | Tianma |
| Veľkosť | 4.7 |
| Aplikácia | PND |
| Rozhodnutie | 480×272 |
| Zloženie | LCM |
| Jas | 280 |
| CR | 500:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | TIANMA |
| panelový model | TS047NAARB01-00 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 4.7 inch |
| rozhodnutie | 480(RGB)×272 , WQVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 103.68×58.752 mm |
| obrys | 114.3×72.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 280 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193150% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 5S2PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit) + SPI, 45 pins |
| vstupné napätie | 3.3V (Typ.)(VDD) |
| aplikácie | PND |
| AMS465GS53 | Samsung | 4.7 | 720×1280 |
| AMS470GS16-1 | Samsung | 4.7 | 720×1280 |
| DMF5003NF-FW | Kyocera | 4.7 | 160×128 |
| H466TAN01.0 | AUO | 4.7 | 720×1280 |
| LH470WX6-SJ11 | LG Display | 4.7 | 750×1334 |
| LS047T1SC01K | SHARP | 4.7 | 1080×1920 |
| LS047T1SC02 | SHARP | 4.7 | 1080×1920 |
| TM047NDH01 | Tianma | 4.7 | 480×272 |
| TM047XDZP02 | Tianma | 4.7 | 540×960 |
| TS047NAARB01-00 | Tianma | 4.7 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| HSD043I9W1-A00 | HannStar | 4.3 | 480×272 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LMS430HF18 | Samsung | 4.3 | 480×272 |
| LMS480KC01 | Samsung | 4.8 | 800×480 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
