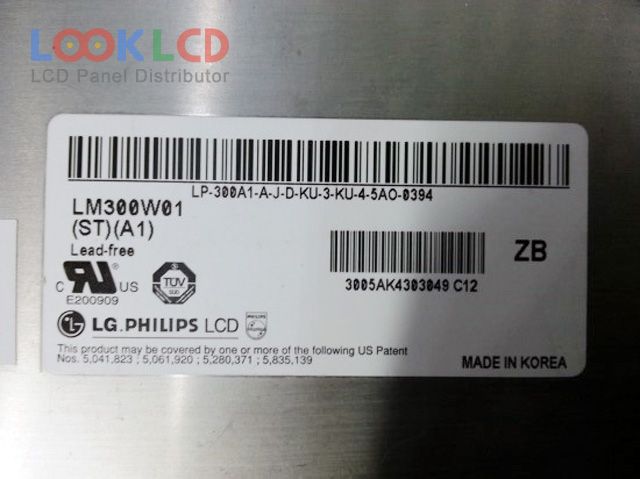

| Číslo dielu | LM300W01-STA1 |
| Značka | LG Display |
| Veľkosť | 30.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 2560×1600 |
| Zloženie | LCM |
| Jas | 370 |
| CR | 600:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | TMDS |
| značka panelu | LG.Philips LCD |
| panelový model | LM300W01-STA1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 30.0 inch |
| rozhodnutie | 2560(RGB)×1600 , WQXGA |
| režim zobrazenia | S-IPS, Normally Black, Transmissive |
| aktívna oblasť | 641.28×400.8 mm |
| obrys | 677.3×436.8 mm |
| povrch | Antiglare (Haze 13%), Hard coating (3H) |
| jas | 370 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 8/6 (Typ.)(Tr/Td); 11 (Typ.)(G to G) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 16 pcsCCFLEmbedded (Inverter) |
| signálové rozhranie | Dual Link TMDS, 45 pins |
| vstupné napätie | 18.0V (Typ.) |
| aplikácie | DMPC |
