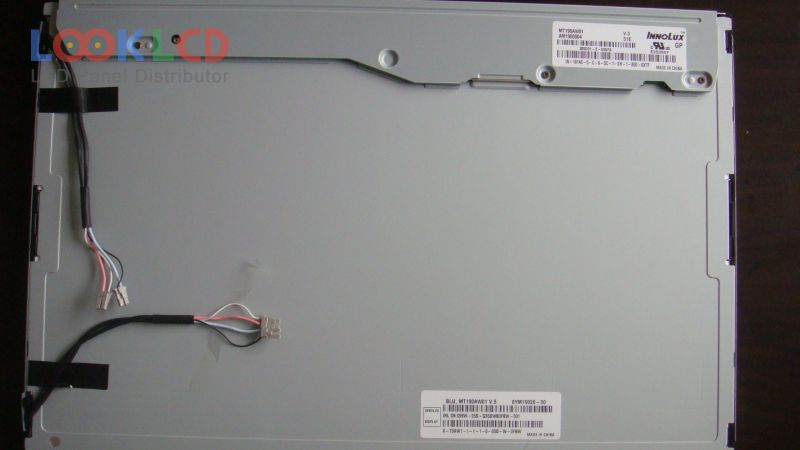

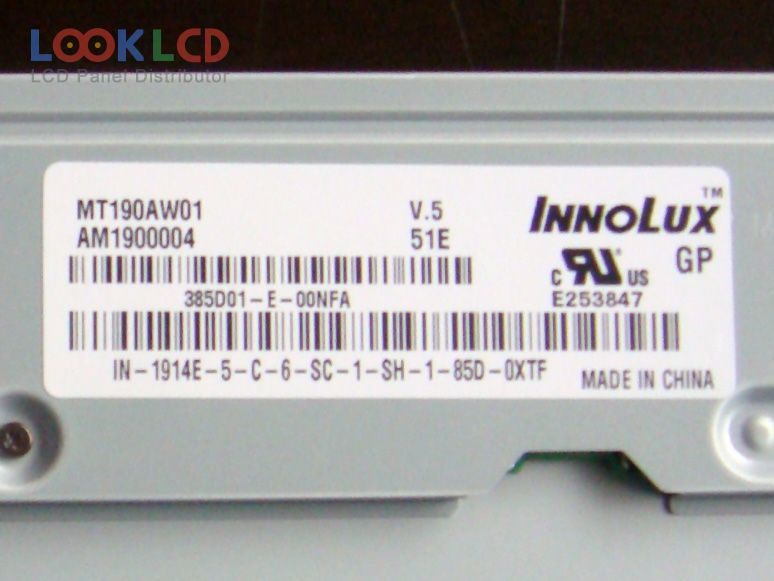

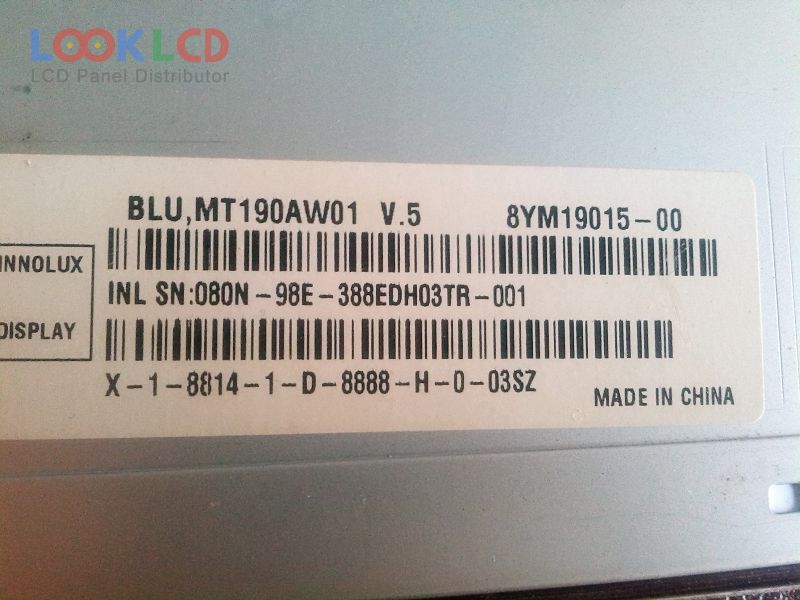

| Číslo dielu | MT190AW01 V.5 |
| Značka | Innolux |
| Veľkosť | 19.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1440×900 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | INNOLUX |
| panelový model | MT190AW01 V.5 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 19.0 inch |
| rozhodnutie | 1440(RGB)×900 , WXGA+ |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 410.4×256.5 mm |
| obrys | 427.2×277.4×16.5 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193174% |
| Doba odozvy | 1.5/3.5 (Typ.)(Tr/Td) |
| pozorovací uhol | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
