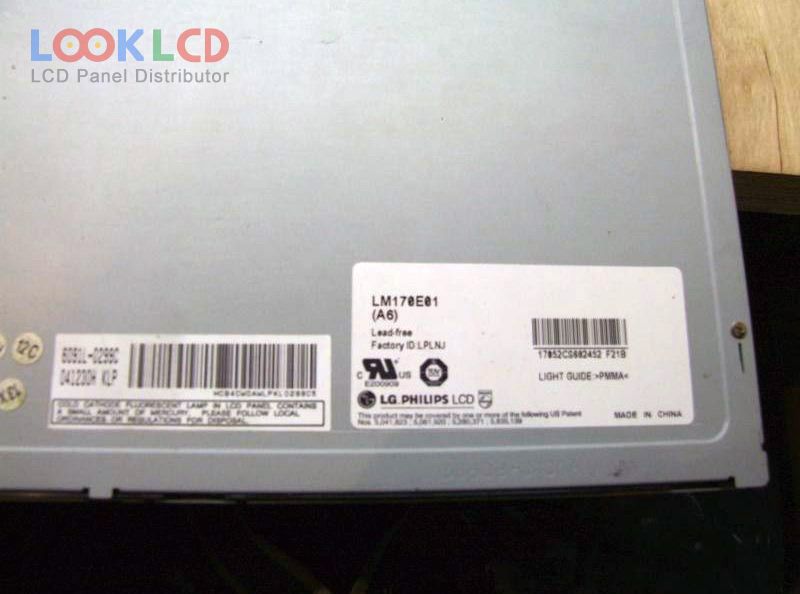

| Číslo dielu | LM170E01-A6 |
| Značka | LG Display |
| Veľkosť | 17.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1280×1024 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 500:1 |
| Farby | 16.2M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | LG.Philips LCD |
| panelový model | LM170E01-A6 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 17.0 inch |
| rozhodnutie | 1280(RGB)×1024 , SXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 337.92×270.336 mm |
| obrys | 358.5×296.5×17.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC), CIE193172% |
| Doba odozvy | 3/9 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/75/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
| LM170E01-A4 | LG Display | 17.0 | 1280×1024 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLBF | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLG1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLH1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ5 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ6 | LG Display | 17.0 | 1280×1024 |
| HSD250MUW2-B00 | HannStar | 24.5 | 1920×1080 |
| HV236WHB-N00 | BOE | 23.6 | 1366×768 |
| LM201WE3-TLJ3 | LG Display | 20.1 | 1680×1050 |
| LM230WF3-SLK1 | LG Display | 23.0 | 1920×1080 |
| LQ150X1DWF1 | SHARP | 15.0 | 1024×768 |
| LTM190M2-L31(Glare) | Samsung | 19.0 | 1440×900 |
| M170EG01 VA | AUO | 17.0 | 1280×1024 |
| M240HW02 V7 | AUO | 24.0 | 1920×1080 |
| M270H1-L01 | Innolux | 27.0 | 1920×1080 |
| M320QAN01.0 | AUO | 32.0 | 3840×2160 |
