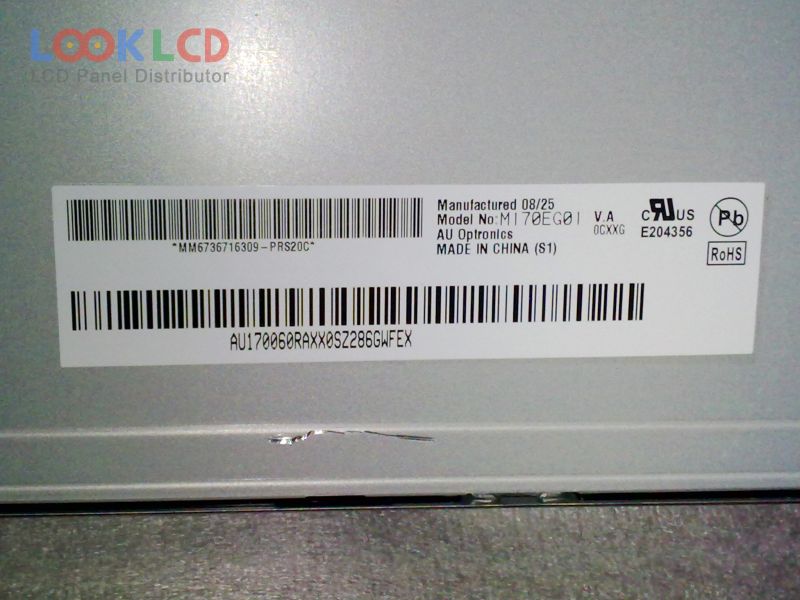

| Číslo dielu | M170EG01 VA |
| Značka | AUO |
| Veľkosť | 17.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1280×1024 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 700:1 |
| Farby | 16.2M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | M170EG01 VA 4 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 17.0 inch |
| rozhodnutie | 1280(RGB)×1024 , SXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 337.92×270.336 mm |
| obrys | 358.5×296.5×17.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC), CIE193172% |
| Doba odozvy | 6/2 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
| M170E8-L01 | Innolux | 17.0 | 1280×1024 |
| M170EG01 V0 | AUO | 17.0 | 1280×1024 |
| M170EG01 V5 | AUO | 17.0 | 1280×1024 |
| M170EG01 V8 | AUO | 17.0 | 1280×1024 |
| M170EG01 V9 | AUO | 17.0 | 1280×1024 |
| M170EGE-L20 | Innolux | 17.0 | 1280×1024 |
| M170EN01 V9 | AUO | 17.0 | 1280×1024 |
| M170EN04 V6 | AUO | 17.0 | 1280×1024 |
| M170ETN01.1 | AUO | 17.0 | 1280×1024 |
| M170EU01 V0 | AUO | 17.0 | 1280×1024 |
| HR236WU1-100 | BOE | 23.6 | 1920×1080 |
| LM150X06-A4C4 | LG Display | 15.0 | 1024×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LM215WF3-SDA1 | LG Display | 21.5 | 1920×1080 |
| LM220WE5-TLA1 | LG Display | 22.0 | 1680×1050 |
| LTM185AT04 | Samsung | 18.5 | 1366×768 |
| M170ETN01.1 | AUO | 17.0 | 1280×1024 |
| M185B1-L02 | Innolux | 18.5 | 1366×768 |
| M190EG02 V7 | AUO | 19.0 | 1280×1024 |
| TX38D12VC0CAA | KOE | 15.0 | 1024×768 |
