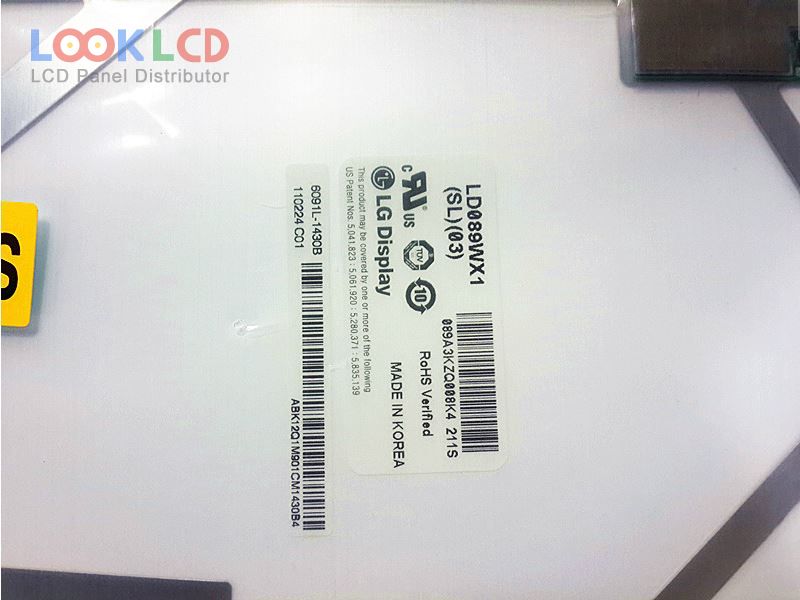

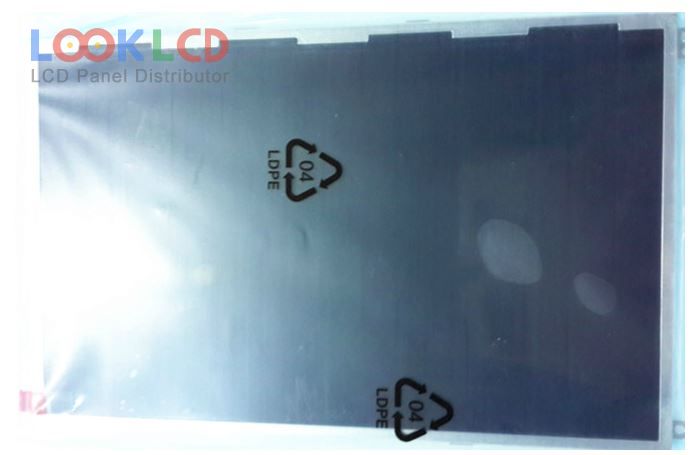

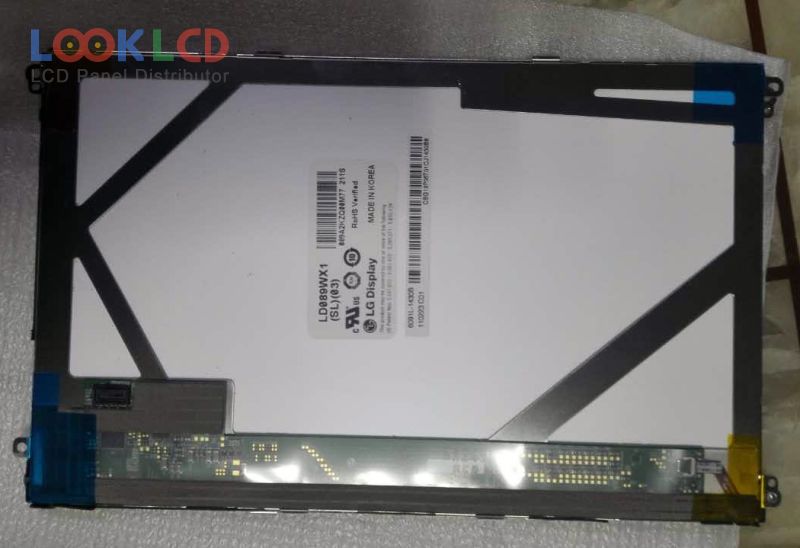

| Číslo dielu | LD089WX1-SL03 |
| Značka | LG Display |
| Veľkosť | 8.9 |
| Aplikácia | PAD |
| Rozhodnutie | 1280×768 |
| Zloženie | LCM |
| Jas | 370 |
| CR | 800:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | LG Display |
| panelový model | LD089WX1-SL03 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.9 inch |
| rozhodnutie | 1280(RGB)×768 , WXGA |
| režim zobrazenia | S-IPS, Normally Black, Transmissive |
| aktívna oblasť | 193.92×116.352 mm |
| obrys | 207×130.4×3.2 mm |
| povrch | Glare (Haze 0%) |
| jas | 370 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 35 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S4PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
