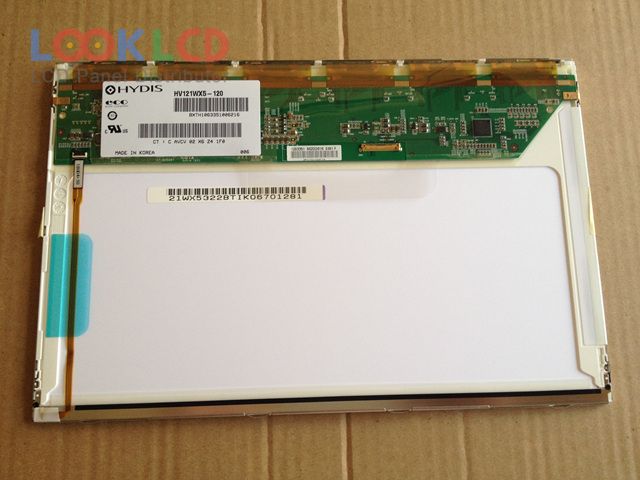

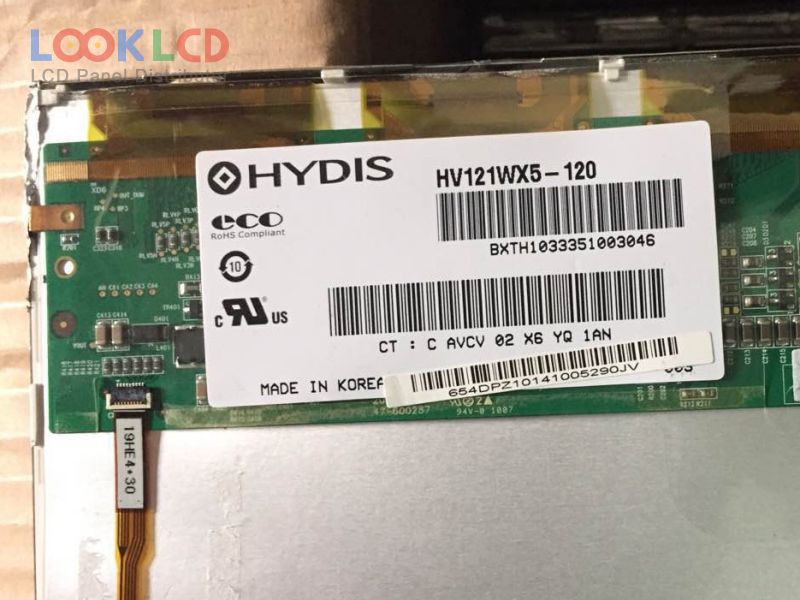

| Číslo dielu | HV121WX5-120 |
| Značka | HYDIS |
| Veľkosť | 12.1 |
| Aplikácia | PAD |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 220 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | eDP |
| značka panelu | HYDIS |
| panelový model | HV121WX5-120 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | AFFS, Normally Black, Transmissive |
| aktívna oblasť | 261.12×163.2 mm |
| obrys | 276.8×180×6.8 mm |
| povrch | |
| jas | 220 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 12S4PWLEDEmbedded (LED Driver) |
| signálové rozhranie | eDP (1 Lane), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| B080EAN02.0 | AUO | 8.0 | 800×1280 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HSD100PXN1-A00-C40 | HannStar | 10.0 | 1024×768 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| HV089WX1-100 | HYDIS | 8.9 | 1280×768 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| M070SW46 R0 | IVO | 7.0 | 1200×1920 |
