| Číslo dielu | M215HW03 V1Q0 |
| Značka | AUO |
| Veľkosť | 21.5 |
| Aplikácia | DMPC |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | Mini LVDS |
| značka panelu | AUO |
| panelový model | M215HW03 V1Q0 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 21.5 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 476.64×268.11 mm |
| obrys | 495.6×292.2×8.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC) |
| Doba odozvy | 3.8/1.2 (Typ.)(Tr/Td) |
| pozorovací uhol | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 16S4PWLEDWithout Driver |

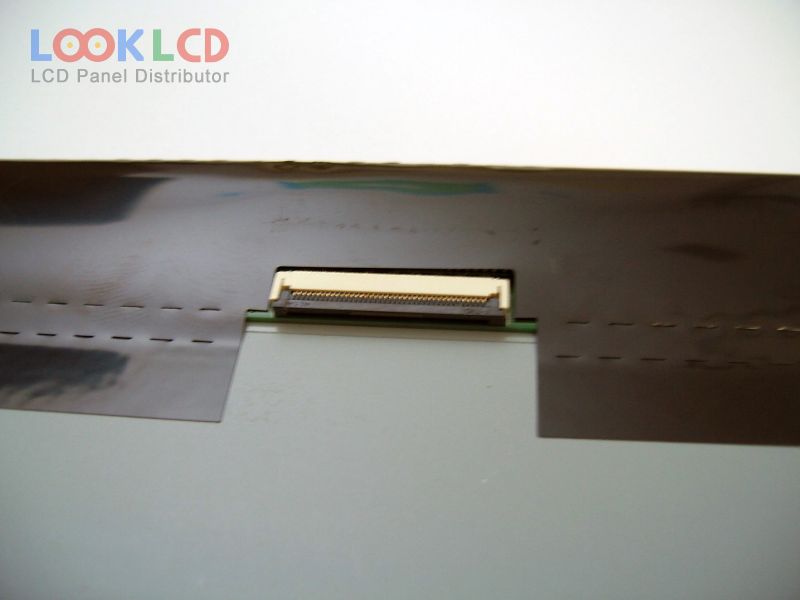

| signálové rozhranie | Mini LVDS, 40 pins |
| vstupné napätie | 3.3/12.8/27.0/-10.3V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | DMPC |
