| Číslo dielu | HGS128647-Y-EH-LV |
| Značka | Other |
| Veľkosť | 1.54 |
| Aplikácia | IA |
| Rozhodnutie | 128×64 |
| Zloženie | OLED |
| Jas | 150 |
| CR | 2000:1 |
| Farby | Mono(Yellow) |
| Podsvietenie | self |
| Rozhranie | CPU/SPI/I²C |
| značka panelu | TSINGTEK |

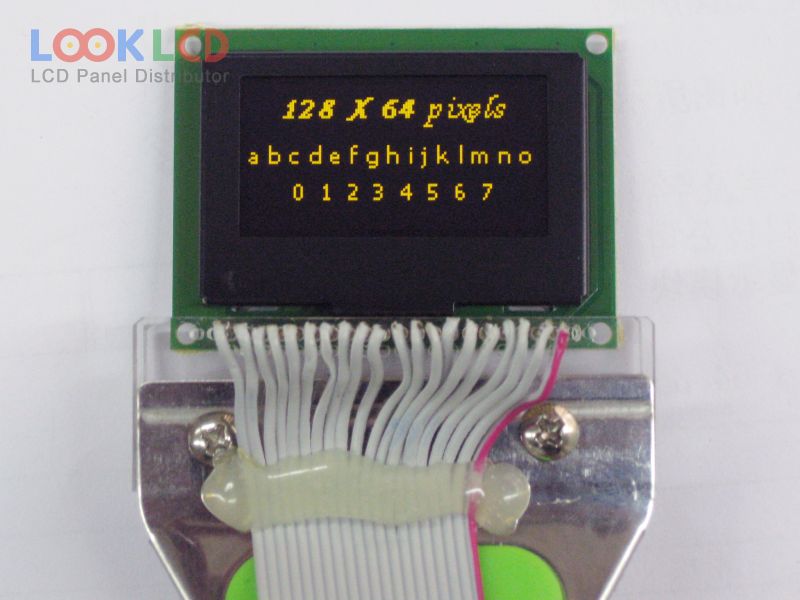

| panelový model | HGS128647-Y-EH-LV |
| typ panelu | PM-OLED , OLED |
| veľkosť panelu | 1.54 inch |
| rozhodnutie | 128×64 |
| aktívna oblasť | 35.056×17.52 mm |
| obrys | 54×39.5×8.5 mm |
| povrch | |
| jas | 150 cd/m² (Typ.) |
| kontrastný pomer | 2000 : 1 (Min.) |
| zobraziť farby | Mono(Yellow) |
| pozorovací uhol | 80/80/80/80 (Min.)(L/R/U/D) |
| vodič ic | Built-in SSD1305 |
| signálové rozhranie | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| rohs: | |
| aplikácie | IA |
